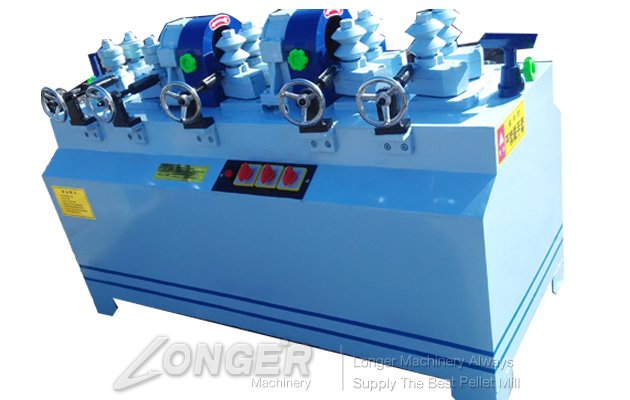

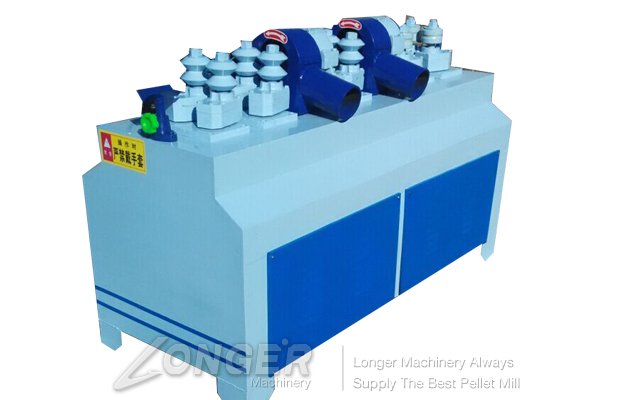

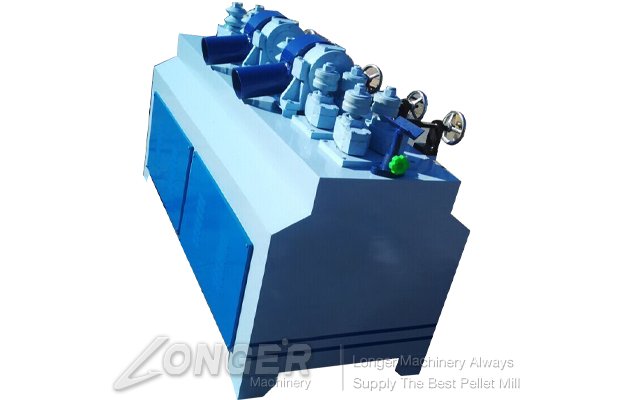

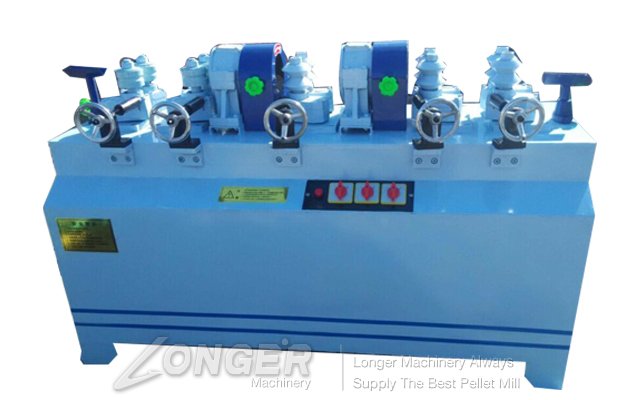

Round Wood Stick Cutting Machine
MOQ: | 1 /Sets |
Brand: | LONGER MACHINERY |
Certification: | CE |
Supply Ability: | 100 Set/Sets Per Month |
PAY METHOD: | WEST UNION L/C T/T CASH |
Warranty Time: | 12 Months |
LOADING PORT: | Qingdao |
Country Of Origin: | China |
Application:

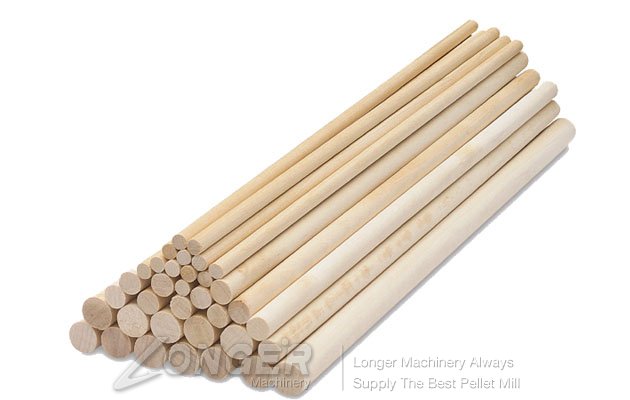

This kind of round wood stick machine can produce round wood stick with Double Feeding and Double Discharging
Characteristics:
Round Wood Cutter with Double Cutter Head sent the original raw wood directly to processing units, out of is the same required finished product.save the expenditure of labor, electricity and other expenses
Introduction:
This kind of round Wood Stick Molding Machine is mainly used for processing the elongated wood and log core into wood stick according to the requirements.
1.This machine is belong to wood round stick processing equipment, Mainly make long strips bamboo or wood material and round wood into bamboo and wood round sticks.
1.This machine is belong to wood round stick processing equipment, Mainly make long strips bamboo or wood material and round wood into bamboo and wood round sticks.
2.Materials widely, can process square stock and round stock embryo.
3.Smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.
4.High productivity, the fastest feed can reach 18m/min, we can also design output more round sticks at one time according to customer's need.
Technical Data
Model | LGMC90-80C | Remark |
Main motor power | 4kw+4kw | |
Feeding motor power | 0.75kw | |
Worm wheel deceletator | 50:1 | |
Spindle velocity | 4000r/min | |
Feeding speed | 3/5m/min | Double pulley gear |
Cutting diameter | 20-80mm | Select square section material, or raw wood |
Front Max cutting quantity | 6mm(Semi-diameter) | |
Back Max cutting quantity | 2mm(Semi-diameter) | |
Min.working length | 1000mm | |
Overall dimension | 1870x610x1100mm | |
Machine weight | 620kg |
