Semi-automatic Bag-sewing Machine
MOQ: | 1 /Sets |
Brand: | LONGER MACHINERY |

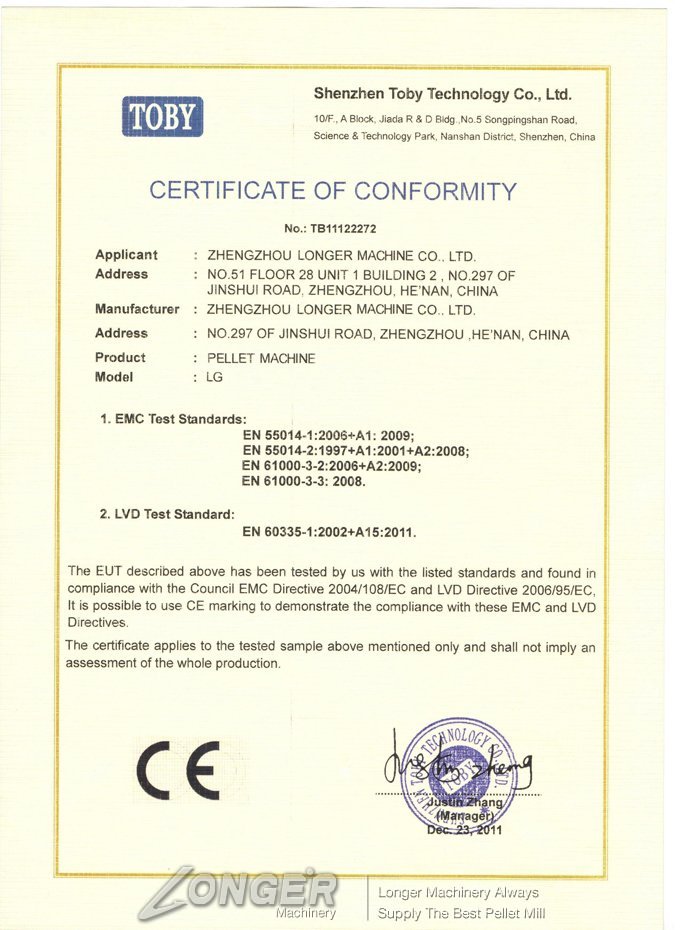

Certification: | CE |
Supply Ability: | 100 Set/Sets Per Month |
PAY METHOD: | WEST UNION L/C T/T CASH |
Warranty Time: | 12 Months |
LOADING PORT: | Qingdao |
Country Of Origin: | China |

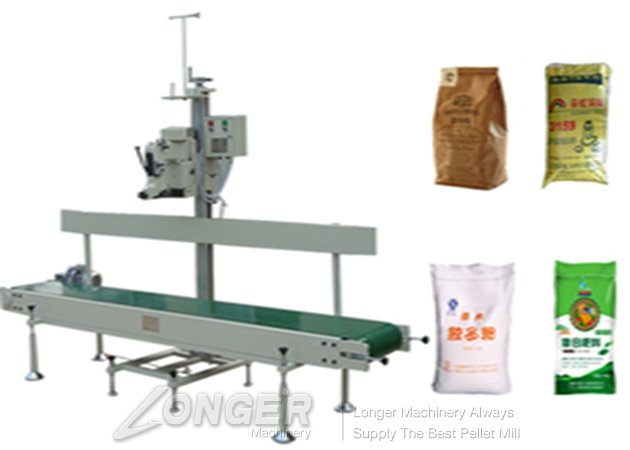

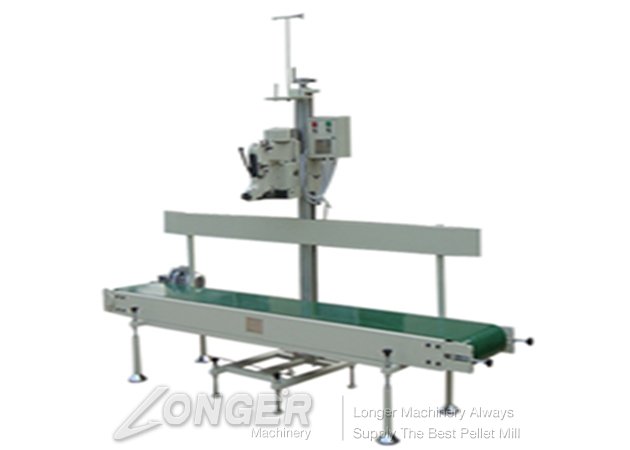

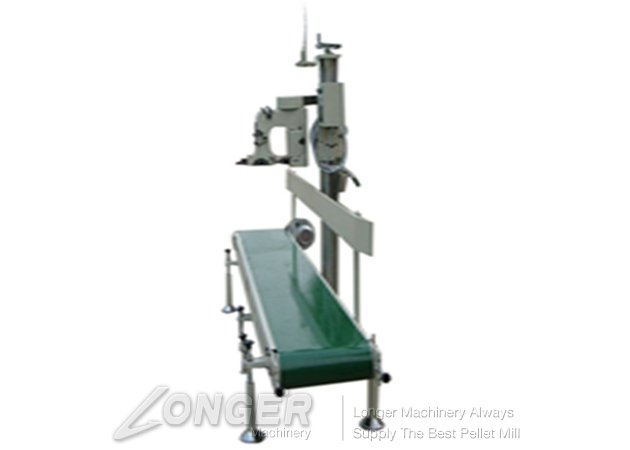

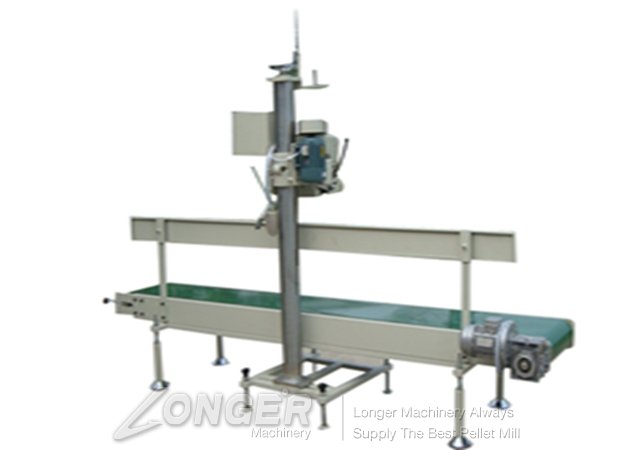

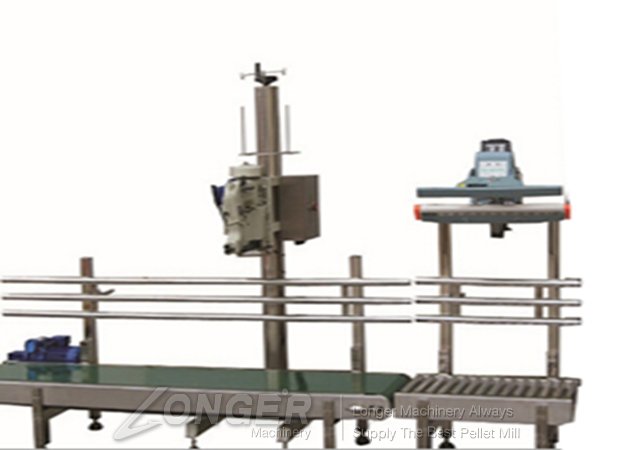

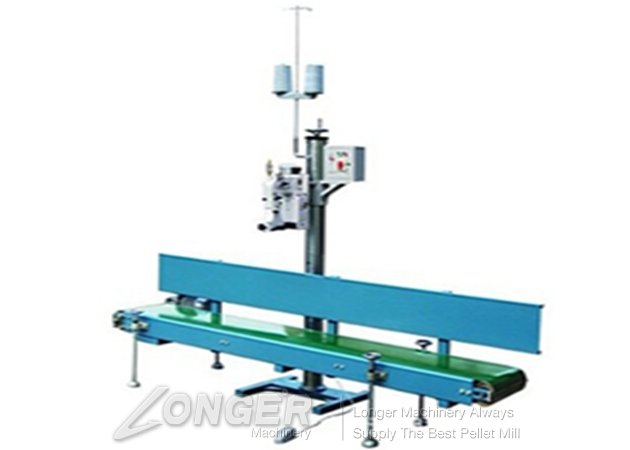

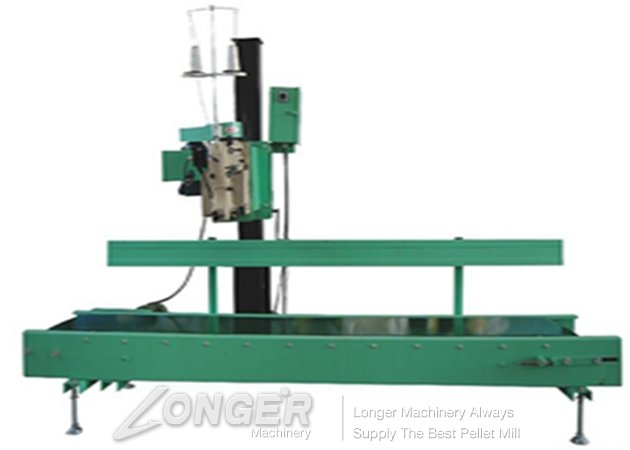

Sewing machine mounted on the conveyor; turn the power begin running conveyors forward delivery bag filled with material; when the bag reaches the foot of the sewing machine, press the foot switch to start the sewing machine began stitching; sew each push the bag when the bag corner cutter cut braided line, release the foot switch sewing machine downtime.controlled by a foot switch to start and stop the sewing machine, concealed knife cut ,sewing machine, belt conveyor,support column,Available for both plain sewn and crepe-tape bound closure. This closing system can be used with a range of conveyors or an existing conveyor,The filled bag is released onto the bag closing line conveyor which transports the bags to the bag closing line which comprises a sewing pedestal, in-feed device and sewing head for automatic start, stop and cut of the cotton chain thread
Technical Data
Model | LG-35-6 |
Composition | LG35-2C sewing machine,LG1500 belt conveyor,support column. |
Features | controlled by a foot switch to start and stop the sewing machine, concealed knife cut braided line. |
Capacity | 9m/min,200-400bags/h |
Voltage | 380 v / 50 hz |
Height of bag | 3.400-900mm |
Weight | 3m, can be customized according to the production |
Motor | conveyor370W sewing machine:370W |
Machine size | 2000*1500*600mm |
Total weight | 200kg |
