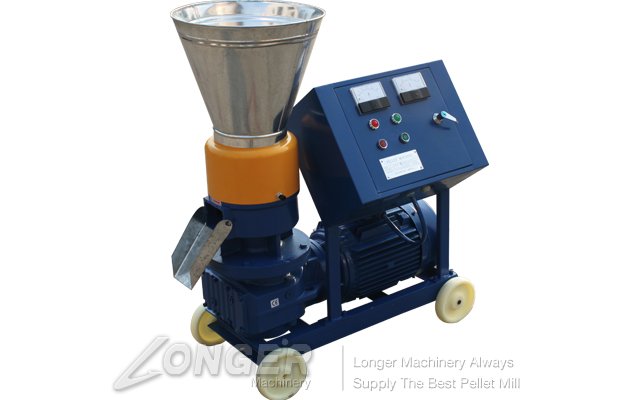

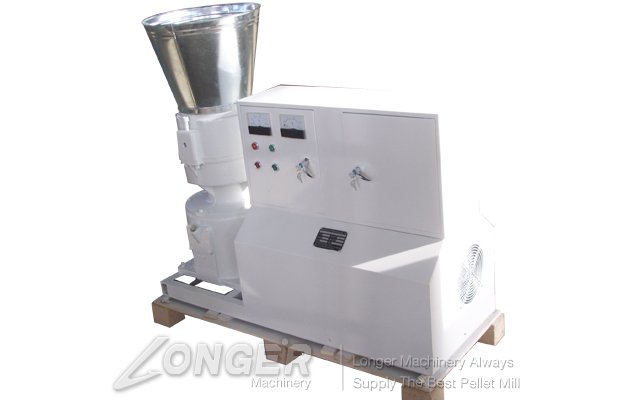

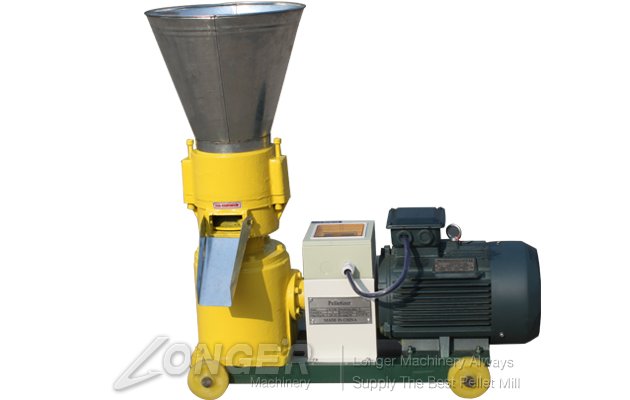

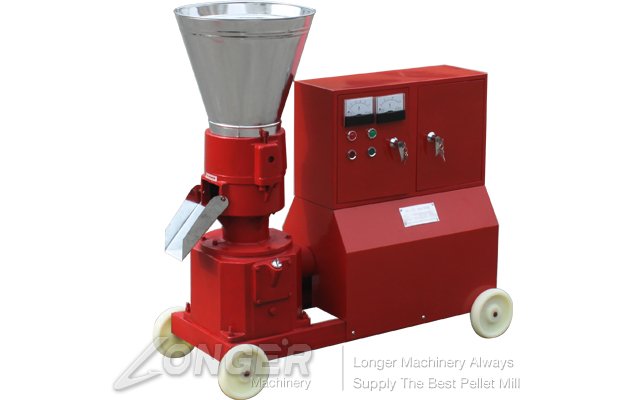

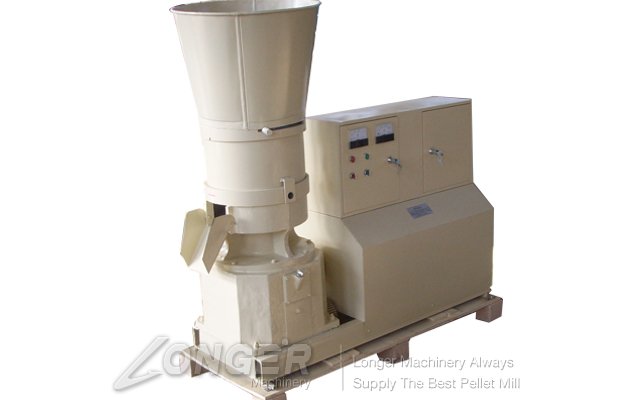

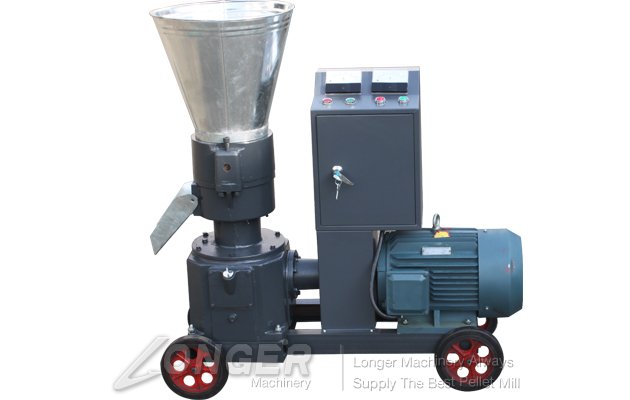

Flat-die Feed Pellet Machine

MOQ:1 Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply AbilitySupply Ability:100
PortPort:Qingdao Port|Tianjin Port

•24/7 online support   •Certification:CE

Product Details

Features of :

LG Series flat-die pellet machine is our company’s new design, adopt to domestic advanced technology,once forming technology. It has the advantage of less investment, easy to operate,and easy to maintain,with the high pellet forming rate and so on. Clients also can according to demand to choose different aperture to produce particles of different sizes,also depend on the material to choose different compression ratios of the mold plate, to produce livestock for different particles.
The pellet produced by our company’s machine is smooth surface,strong, During pelletizing, the temperature will up to 70-80 degree,can make the starch gelatinized,internal curing deep penetration, non-perishable, deterioration, long-term storage.Also can improve the palatability and digestion and absorption functions of livestock and shorten the fattening of livestock, greatly reducing the cost of production of the majority of farming households.
This flat-die pellet machine can be used to make animal feed for chicken, rabbit, cattle, sheep, and also can make fertilizer and wood pellet.


Technical Data of :

Model LGKL-120B LGKL-150B LGKL-200 LGKL-230 LGKL-260 LGKL-360
Capacity 60-100kg/h 90-120kg/h 200-300kg/h 300-400kg/h 400-600kg/h 600-800kg/h
Weight(Kg) 100 120 220 320 450 580
Packing Size(cm) 75*35*65 75*35*65 100*46*90 114*54*93 112*53*107 134*58*106
Motor (kw) 3 4 7.5 11 15 22
Die specifications 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm
Dia of flat platform 120mm 150mm 200 mm 230 mm 260 mm 360 mm
