0086-18539931566Corn Hammer Machine|Grain Crusher|Grinder
| MOQ: | 1 /Sets |
| Brand: | LONGER MACHINERY |

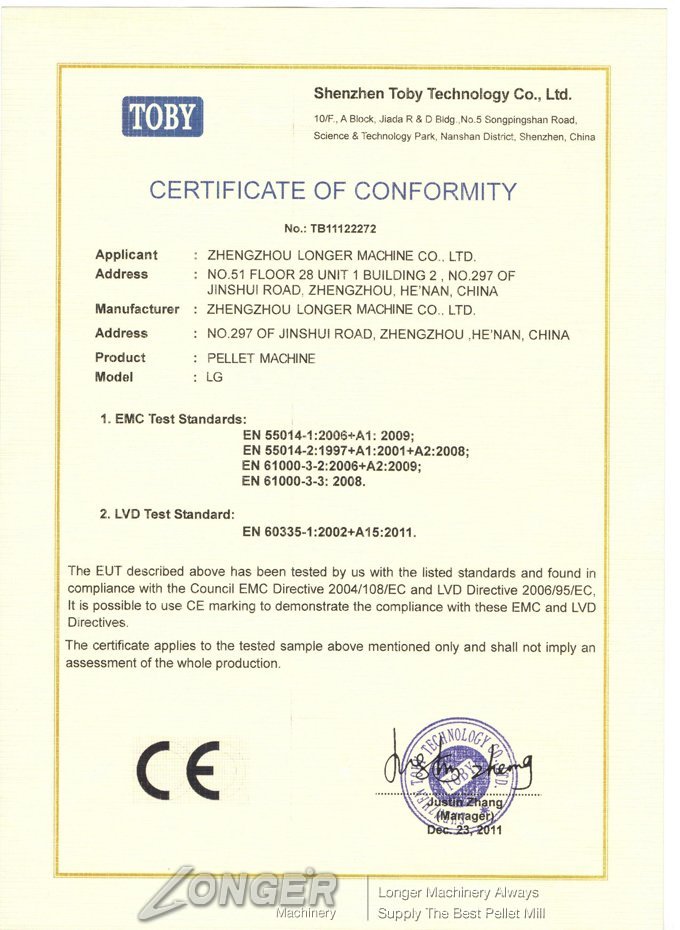

| Certification: | CE |
| Supply Ability: | 100 Set/Sets Per Month |
| PAY METHOD: | WEST UNION L/C T/T CASH |
| Warranty Time: | 12 Months |
| LOADING PORT: | Qingdao |
| Country Of Origin: | China |

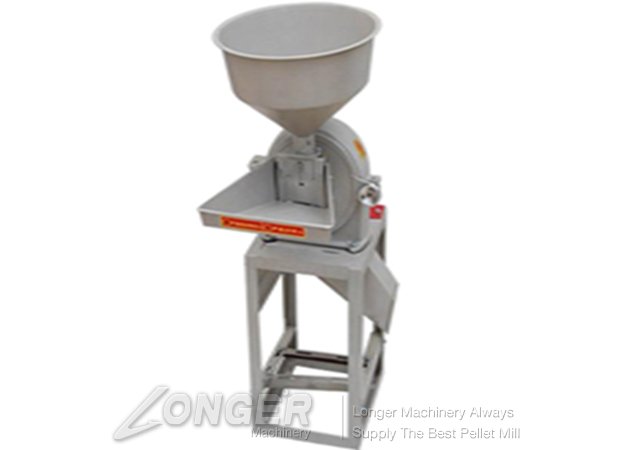

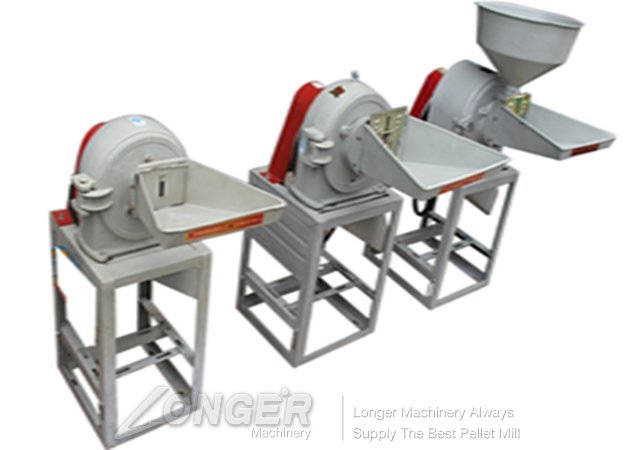

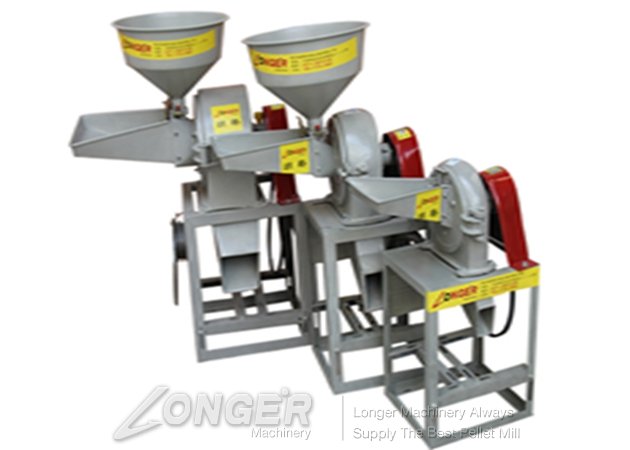

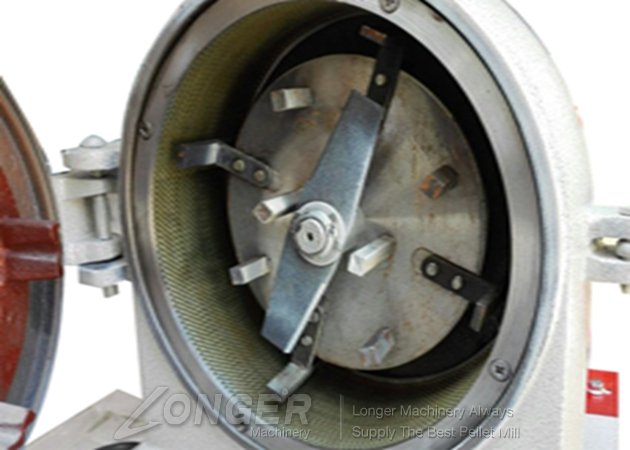

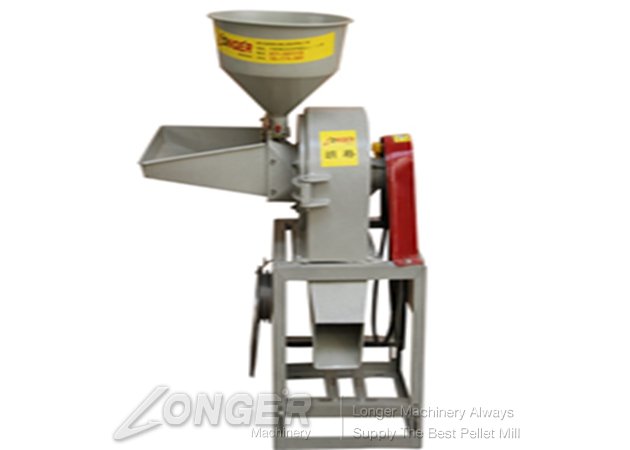

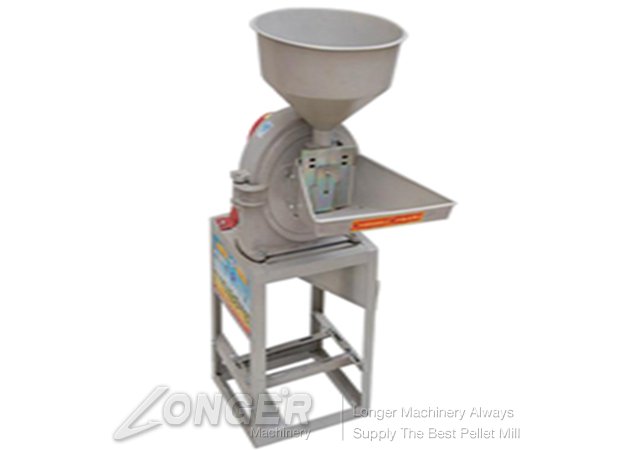

Corn Hammer Machine is used the relative movement of tooth plate and fixed tooth to crush the raw material by the impact, friction and raw material impact between each other.
This machine with simple structure, strong solid, smooth operation, crushing effect is good, the crushed material can directly by the host the reduction in grinding cavity, degree of grain size can be obtained by changing different aperture of mesh.
This machine with simple structure, strong solid, smooth operation, crushing effect is good, the crushed material can directly by the host the reduction in grinding cavity, degree of grain size can be obtained by changing different aperture of mesh.
This machine can mill the mill the maize, rice husk, jowar, straw, peanut straw,bean straw,seasoning into powder shape, with size of 0.4mm.
The machine is used to grind dry brittle materials, such as spice, seasoning, pepper, chili, aniseed, ginger, garlic, coffee beans, cocoa beans, herb or medicine, tea leaves, grains,wheat, corn,rice, soybean, green beans, red beans, feed, tobacco, tea leaf, chemical materials ,dry vegetables, dry fruits, and so on.It is widely used in food, feed, chemical, medical or pharmaceutical, refractory, non-metallic, abrasive, metallurgy, construction materials and agricultural industries.
The machine has the following advantages:
Easy to operate and maintain.
Small size is easy to move.
Use for kinds of material.

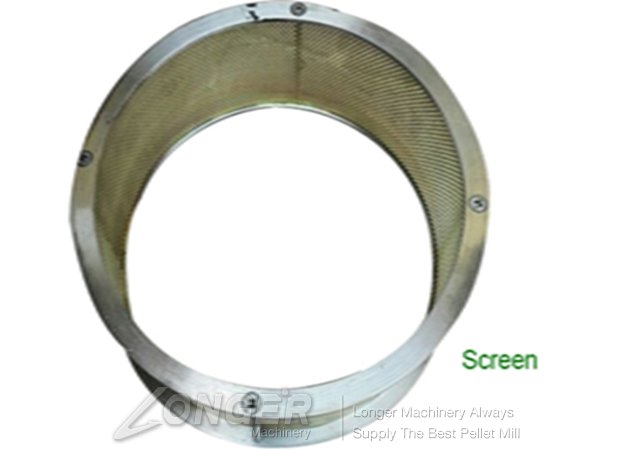

Easy to change the screen,we can provide different size range screen from 0.4mm to 10mm.
Technical Data
| Model | Power | Weight（kg） | Dimension(mm) | Capacity (kg/h) |
| LG15 | 220V,2.2kW | 16 | 540*420*410 | 50 |
| LG19 | 220V,2.2kW | 19 | 680*680*530 | 100 |
| LG21 | 220V,3kW | 26 | 700*490*610 | 150 |
| LG23 | 220V,3kW | 36 | 800*490*850 | 200 |
| LG23A | 220V,4KW | 38 | 800*490*850 | 200 |
| LG29 | 220V,4.5KW | 50 | 700*900*530 | 350 |
| LG35 | 380V,5.5kW | 85 | 870*670*1030 | 800 |
| LG35A | 380V,7.5kW | 105 | 870*700*1100 | 1000 |
