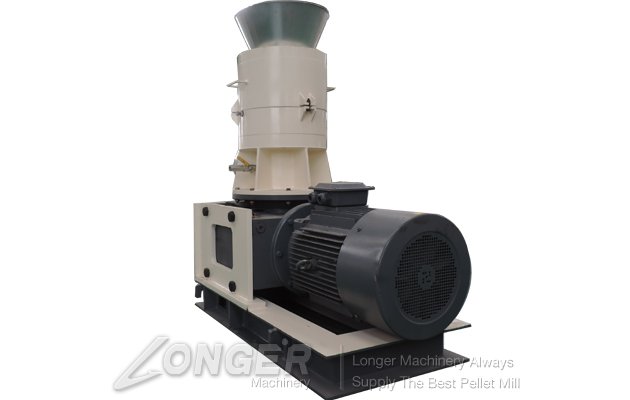

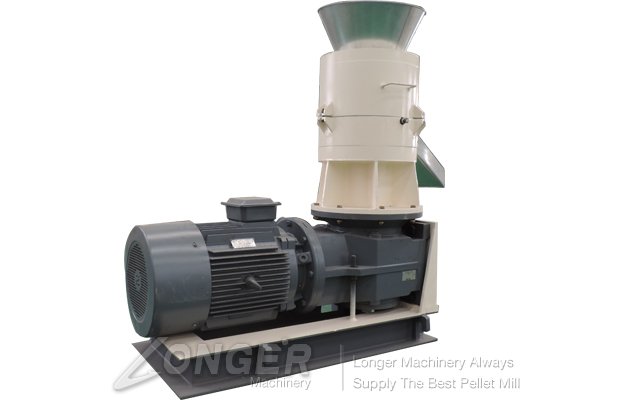

View larger image Flat-Die Wood Pellet Mill Machine
MOQ:1 Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply Ability:100Port:Qingdao Port|Tianjin Port
•24/7 online support •Certification:CE
Get Price
Product Details
Features of :
Advantages:
1.The drive part install the automatic filtration cycle and lubrication system, to make sure the gear and large bearings can lubrication constantly.
2.The pellet room have the automatic batch-type oil supply system,lubrication system, to ensure the lubrication between roller and large bearings.
3.Tapered roller can induce the friction which is not necessary.
4.Out flat-die ;pellet machine set a observation door, you can observe the machine’s working ,and check the machine at any time, also it’s convenient to maintain.
5.There is a fan with machine’s gear, can ensure the machine radiating timely.
6.The flat-die pellet machine is easy to operate,and different kinds of type, suitable for home use,farmer,and any other industry.
Flat-Die Wood Pellet Mill Machine is used for making fuel pellet,use in school,power plant,hospital and also can make feed pellet with high efficiency,for chicken,cow,duck,sheep and so on. It also can be used to make fertilizer pellet ,multi-functional. The main raw material is widely,such as sawdust,rice husk,cotton stalk,and so on....
Flat-die pellet machine have two parts,one is drive part (include motor,gear case), another part is pelletize part(bearing,mould,roller,knife).
The working principle:
Flat-die pellet machine is easy to operate, just put the raw material into the machine from feed port,the mould rotate friction,the roller rotate,by these two power, the raw material was pressed into mould,and be the cylindrical, these pellet will be sent out through the discharge port, in the discharge port, there is knifes, when the pellet go though, the knife will rotate and cut the pellet into small part, according to customer’s demand, the die clearance can be changed to achieved to get different size pellet.
Flat-die pellet machine is easy to operate, just put the raw material into the machine from feed port,the mould rotate friction,the roller rotate,by these two power, the raw material was pressed into mould,and be the cylindrical, these pellet will be sent out through the discharge port, in the discharge port, there is knifes, when the pellet go though, the knife will rotate and cut the pellet into small part, according to customer’s demand, the die clearance can be changed to achieved to get different size pellet.
Technical Data of :
| Product name | Model | Power (kw) | Capacity(t/h) |
|---|---|---|---|
| 3-series Flat-die pellet mill | LGM3-350 | 37-4 | 0.3-0.5 |
| LGM3-450 | 55-4 | 0.5-0.8 | |
| LGM3-550 | 90-6 | 0.7-1.2 | |
| LGM3-800 | 130-160 | 0.7-1.2 | |
| LGM4-1200 | 280-320 | 3-5 |
