Fish and Chicken Feed Cleaning Screen Machine of Pellet Mill

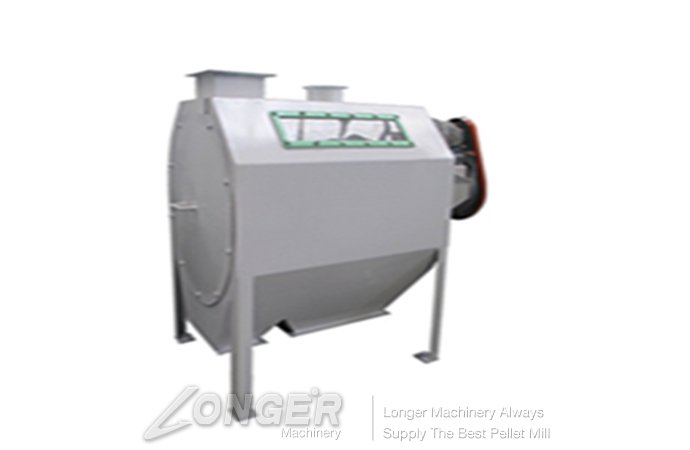

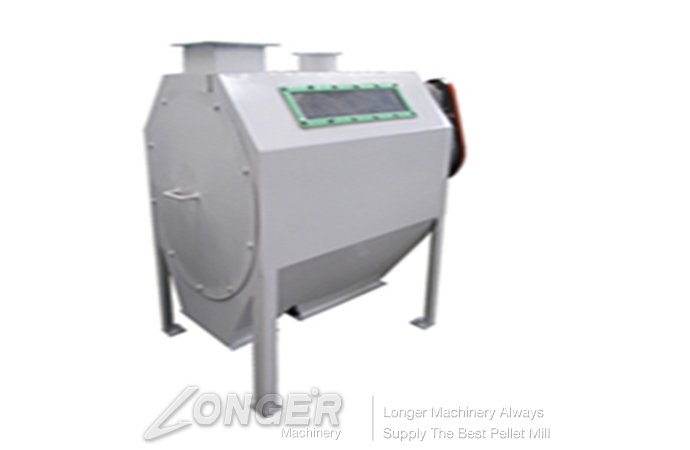

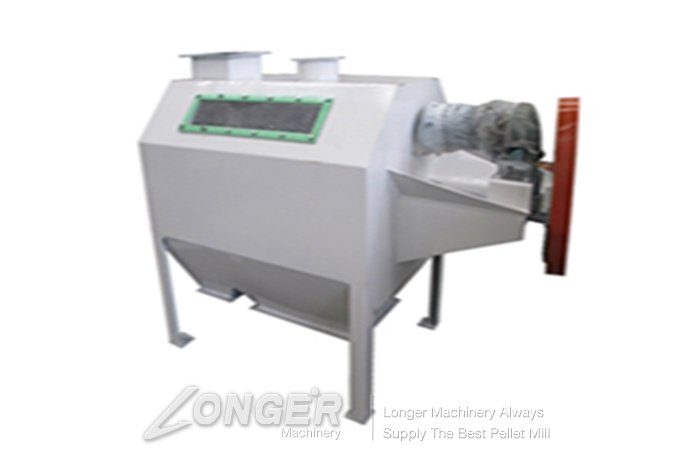

SCY series drum pre-cleaner is the pre-cleaning machinery equipment for food, which use the sieve drum do rotary motion, to clear the clutter from the food; This equipment has simple structure, smooth operation,less cover area , low energy

Features
SCY series drum pre-cleaner is the pre-cleaning machinery equipment for food, which use the sieve drum do rotary motion, to clear the clutter from the food;

This equipment has simple structure, smooth operation,less cover area , low energy consumption, high efficiency, etc, using horizontal cantilever rolling cylindrical sieve and reverse feed, riddle drum has a guide screw, can bolting materials fully and prevent impurities with useful materials;

The equipment is suitable for food processing, feed processing, food warehouse and other industries of raw grain cleaning work ,it  can clean up the wheat straw,rice straw,stone,hemp rope etc. of the wheat, rice, soybeans and so on, avoid the equipment malfunction and damage of back-end processing.

The primary field of application for the high-performance sieving machine is the separation of impurities in grain mills. Additional areas of application include preliminary sifting of break stocks in wheat milling. It uses vibration motor and rubber vibration reduction spring which are the optimized devices to screen and separate the impurities from the grain.
Technical Data
Type Screen drum specification Revolution speed(rpm) Power Capacity
(t/h)
Air suction quantity
(m3/min)
L*W*H
(mm)
SCY63 630*800 20 0.55 10-20 12 1707*840*1240
SCY80 800*950 18 0.75 25-50 12 2038*1020*1560
SCY100 1000*1100 13 1.5 60-70 18 2270*1120*1660
