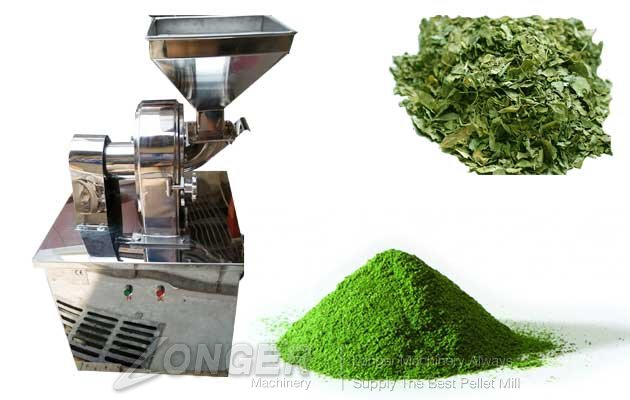

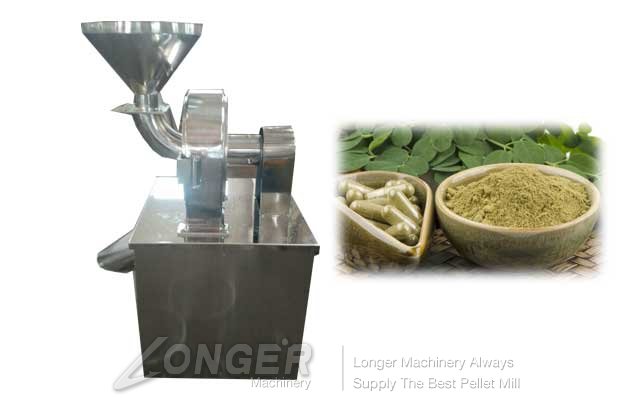

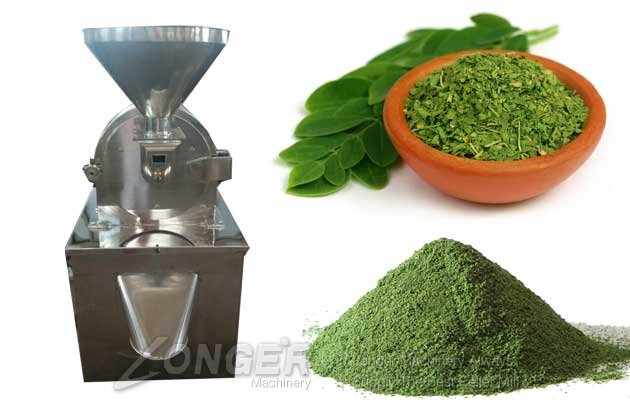

Moringa Powder Making Machine Dried Leaves Grinding Machine
MOQ: | 1 /Sets |
Brand: | LONGER MACHINERY |
Certification: | CE |
Supply Ability: | 100 Set/Sets Per Month |
PAY METHOD: | WEST UNION L/C T/T CASH |
Warranty Time: | 12 Months |
LOADING PORT: | Qingdao |
Country Of Origin: | China |
1, SUS304, healthy and beautiful appearance.
2. impact structure, small space is required.
3. has the advantages of simple operation, uniform grinding.
4. is easy to replace the screen.
5. design of the special cutter, grinding speed.
6. overload protection. Safe operation.
7. high quality motor copper wire
8: replacement of the screen can control the grinding particle size.
The Dried Leaves Grinding Machine uses the relative high speed of the moving gear and the fixed gear to crush the material.
The crushed material can be discharged directly through the comminution chamber, and the size can be changed by changing the different sieve holes.
The crusher is designed for high-speed rotation between movable teech discs and fixed fluted discs, and pulverized raw materials into powder through impact, friction and impact of materials or teech discs. Then the crushed material flows out of the crushing chamber through the hole, and the fineness is controlled by adjusting the different screen.
Model |
LG--20B-C |
LG-30B-C |
LG40B-C |
LG60B |
Capacity(kg/h) |
60-150kg/h |
100-300kg/h |
160-800kg/h |
500-1500kg/h |
Revolution of spindle |
4500r/min |
3800r/min |
3400r/min |
2800r/min |
Grinding size |
10-200 mesh |
|||
Crusher motor |
4kw |
5.5kw |
11kw |
15kw |
Cleaner motor |
0.75kw |
|||
Dimension (mm) |
550*600*1250 |
600*700*1450 |
800*900*1550 |
1000*900*1680 |
Weight (kg) |
250 |
320 |
550 |
680 |
