0086-18539931566Food Grinding Machine
| MOQ: | 1 /Sets |
| Brand: | LONGER MACHINERY |

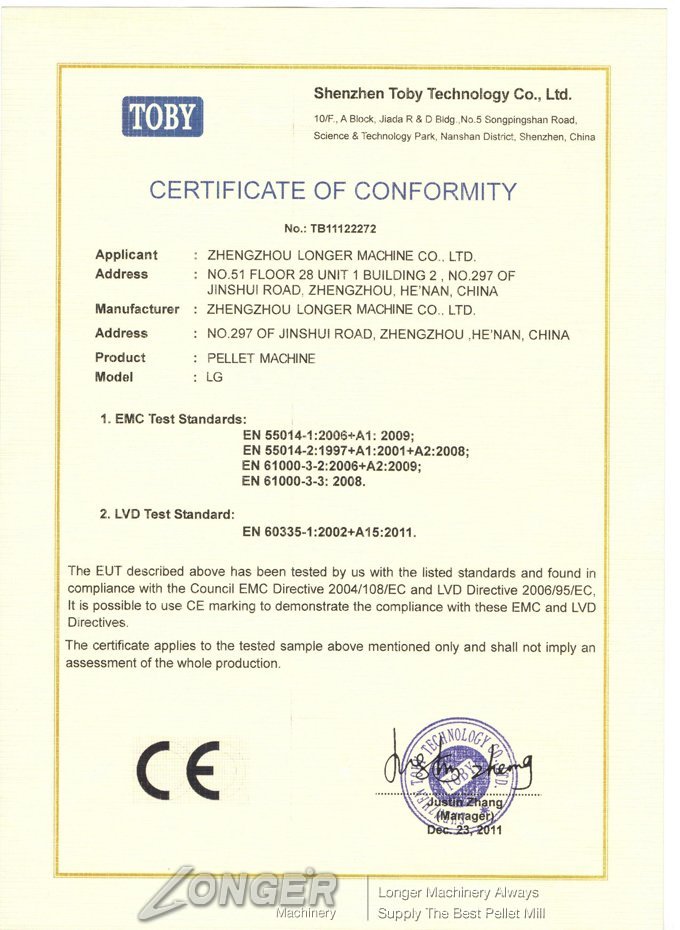

| Certification: | CE |
| Supply Ability: | 100 Set/Sets Per Month |
| PAY METHOD: | WEST UNION L/C T/T CASH |
| Warranty Time: | 12 Months |
| LOADING PORT: | Qingdao |
| Country Of Origin: | China |

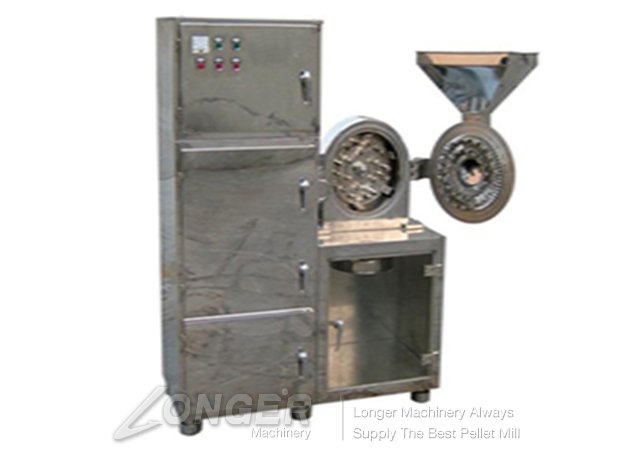

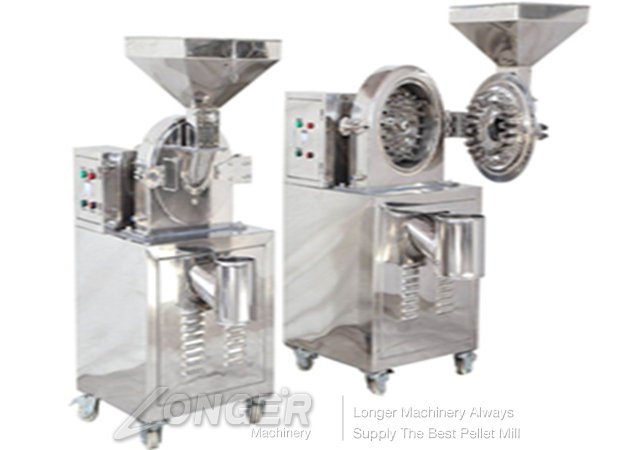

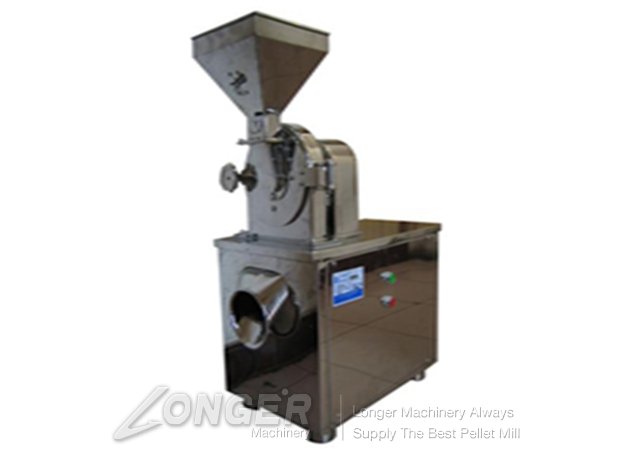

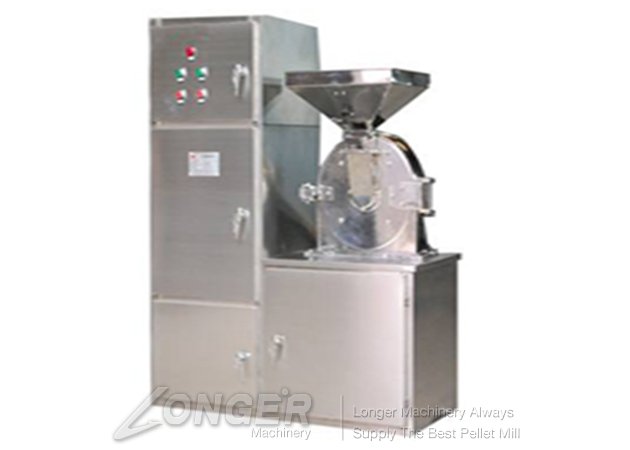

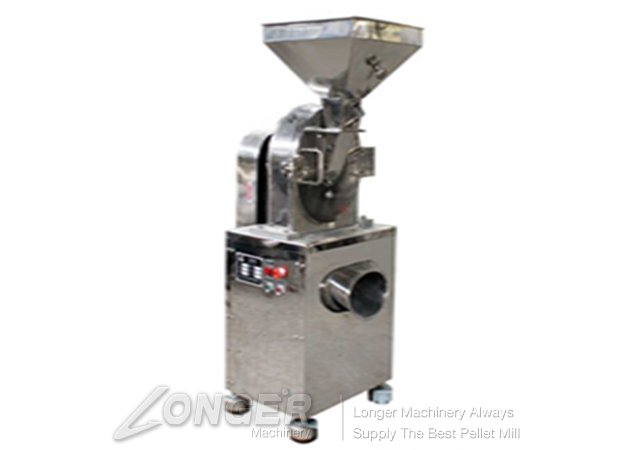

This machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
It’s inner wall is processed finely, so it is smooth and level.
The machine has wide application, it’s wide used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
The machine has the following advantages:
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it’s in conformity with the requirements of state standard and meet the requirements of GMP
According to customer needs, may increase water cooling device and conveyor screw.Details pls contact us.
Technical Data
|
Model |
Capacity(Kg/h) | Work noise | Thickness(mesh) | Voltage(V) | Power(KW) | Speed of main shaft | Size(mm) | Weight(kg) |
| LG200 | 30-120 | <85 | 10-200 | 220/380 | 2.2 | 4200 | 480*520*1040 | 80 |
| LG300 | 60-200 | <85 | 10-200 | 380 | 5.5 | 4200 | 750*600*1260 | 180 |
| LG400 | 80-300 | <85 | 10-200 | 380 | 7.5 | 4200 | 780*700*1350 | 260 |
| LG500 | 100-500 | <85 | 10-200 | 380 | 11 | 4200 | 800*900*1550 | 320 |
| LG600 | 500-1000 | <85 | 10-200 | 380 | 15/22 | 4200 | 1200*1000*2000 | 520 |
