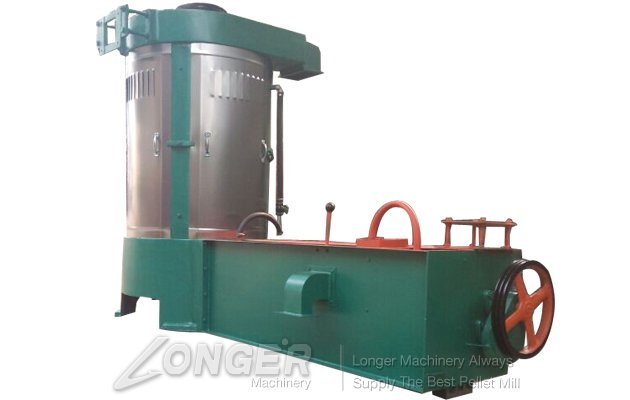

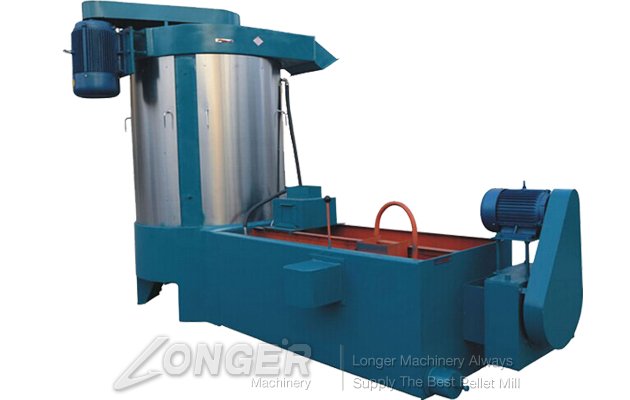

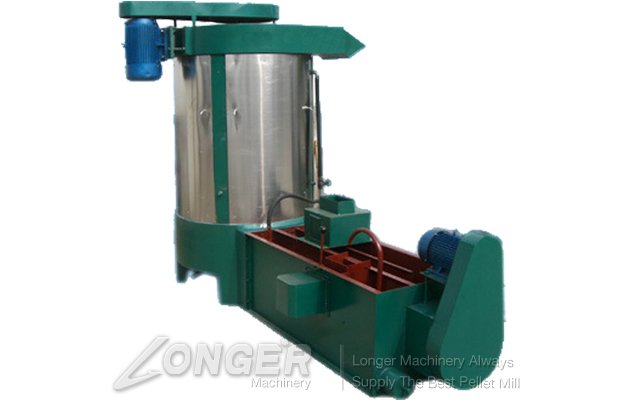

Sesame/Wheat Cleaning and Drying Machine
MOQ: | 1 /Sets |
Brand: | LONGER MACHINERY |

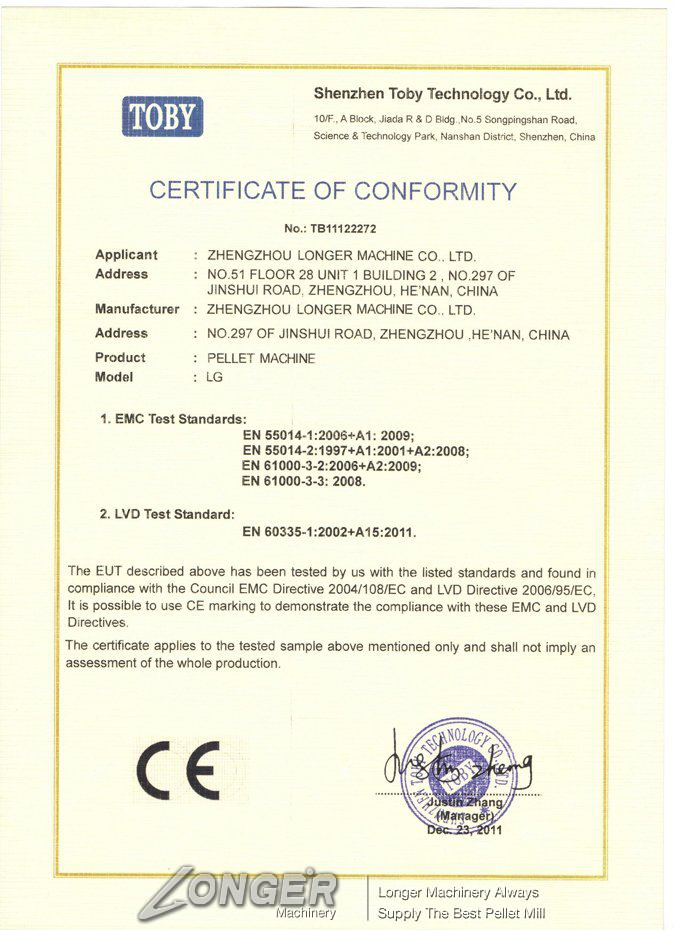

Certification: | CE |
Supply Ability: | 100 Set/Sets Per Month |
PAY METHOD: | WEST UNION L/C T/T CASH |
Warranty Time: | 12 Months |
LOADING PORT: | Qingdao |
Country Of Origin: | China |
This Sesame/Wheat Cleaning and Drying Machine is with high strength cast iron materials,watertight doors,sieving slice,ground dragon tank is stainless steel materials,
mainly suitable for sesame,wheat,quinoa,rapeseed and other granule seeds.
This equipment series uses water to wash and remove dirt on the surface of the gravel in grain,the wheat to mixed with good performance,after the wheat or sesame are washed into the dry rejection to dry. It’s suitable for large, medium and small flour mills.
This series machine is easy to operate, with high quality and washing rate.sesame auger can send the sesame into the spinner, sesame auger partially submerged in the water, stone auger are all immersed in water, due to the rotation of the auger,agitated water in the tank,when the same fall into the water,because it’s small,can not immediately sink in suspension, was scouring sesame auger blades gradually pushed into the spinner.
This equipment series uses water to wash and remove dirt on the surface of the gravel in grain,the wheat to mixed with good performance,after the wheat or sesame are washed into the dry rejection to dry. It’s suitable for large, medium and small flour mills.
This series machine is easy to operate, with high quality and washing rate.sesame auger can send the sesame into the spinner, sesame auger partially submerged in the water, stone auger are all immersed in water, due to the rotation of the auger,agitated water in the tank,when the same fall into the water,because it’s small,can not immediately sink in suspension, was scouring sesame auger blades gradually pushed into the spinner.
Technical Data
Model | LGS-30 | LGS-40 | LGS-50 |
Capacity | 500Kg/h | 1000Kg | 2000Kg/h |
Spindle speed | 960r/min | 750r/min | 600r/min |
The drying sheet specifications |
300mm | 400mm | 500mm |
Seed auger diameter | 115mm | 1 40mm | 1 45mm |
Equipped Power | 90S-4kw | 1.5kw, 0.55kw | 0.75-6kw |
Dimension | 1500*480*1340mm | 1880*790*710mm | 2400*900*710mm |
Weight | 260Kg | 500KG | 900KG |
