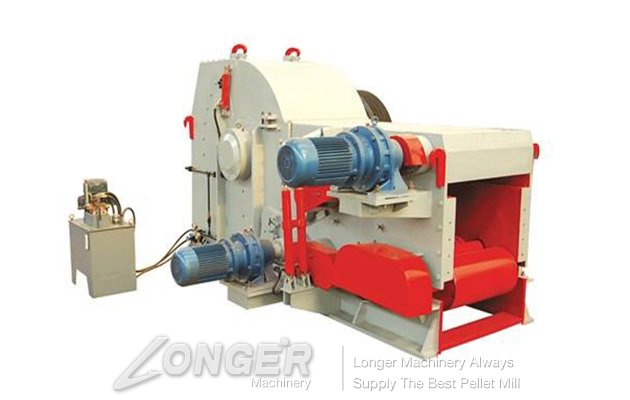

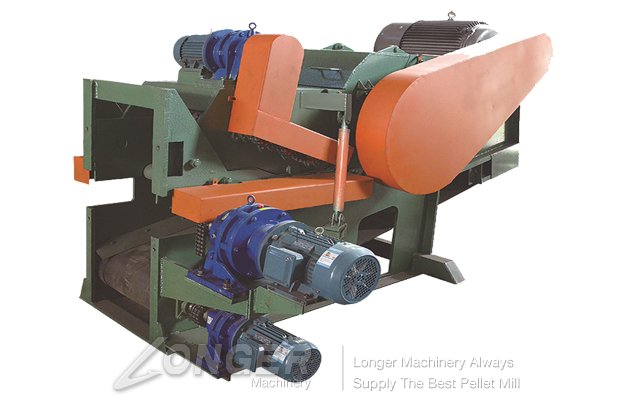

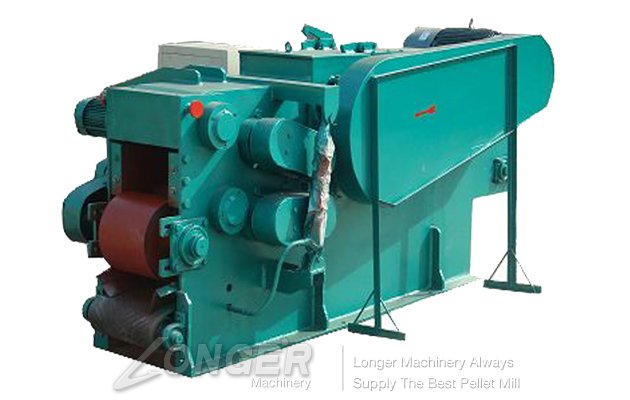

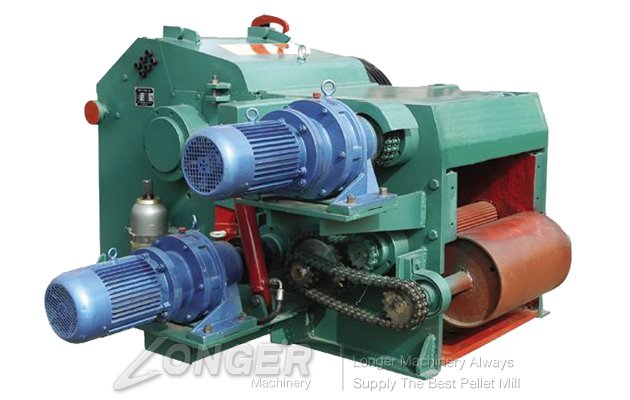

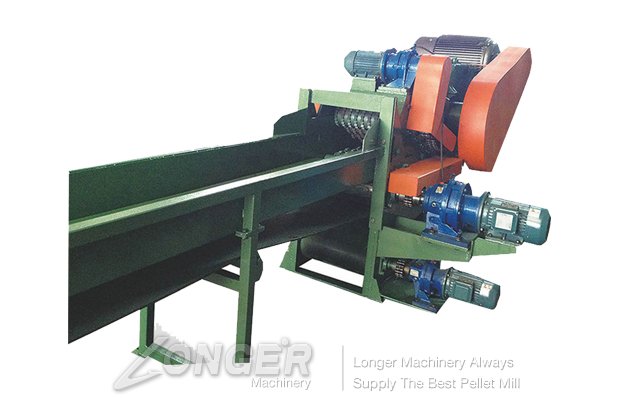

Drum Wood Chipper LGBX218

Drum Wood Chipper LGBX218 with advanced structure and reliable technology can process a wide range of raw materials wether they are wood material or none wood material.

Features
Drum Wood Chipper with advanced structure and reliable technology can process a wide range of raw materials wether they are wood material or none wood material.

Wood raw material: timber, processing residue (branches, batten, log core,  building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, bamboo etc.

It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.They would be the best choice for factories and families which deal with wood scraps.
Technical Data
Model LGBX218
Diameter of cutter head     800mm
Rotary cutter quantity     2
Feeding size    700*280mm
Rotary speed 650R/Min
Feeding speed 35/37.38m/min
Raw material max. diameter 240mm
Wood chip length 15-35mm
Capacity  15-25M3/H
Main power 110Kw
Feeding motor 4*2Kw
weight (kg) 7T
SizeL*W*H (mm) 2670*2150*1500
