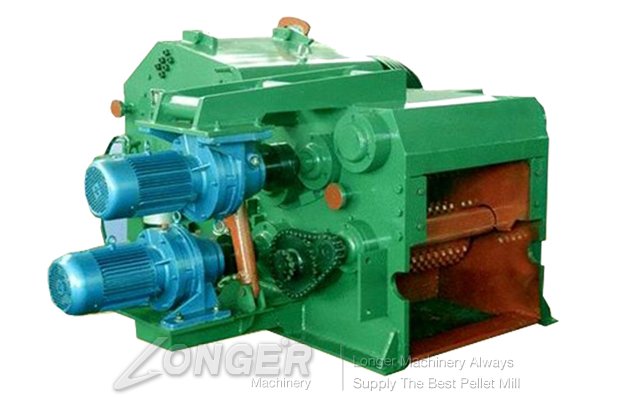

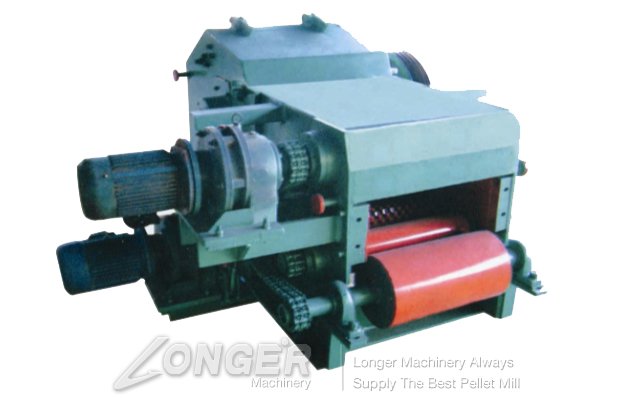

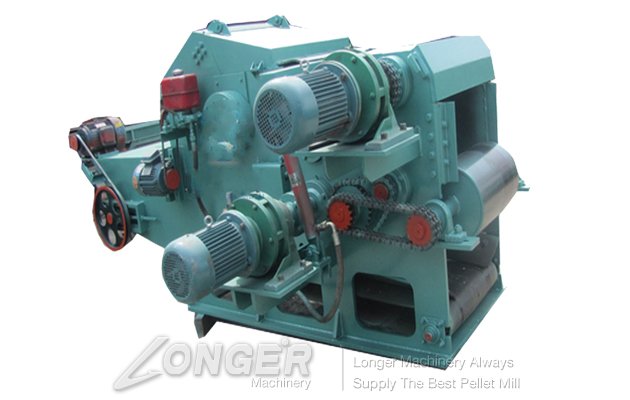

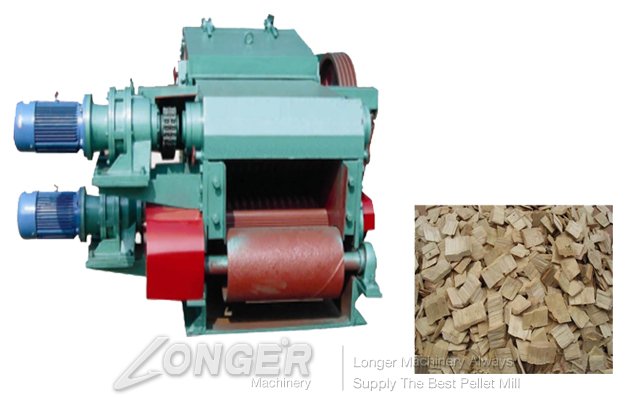

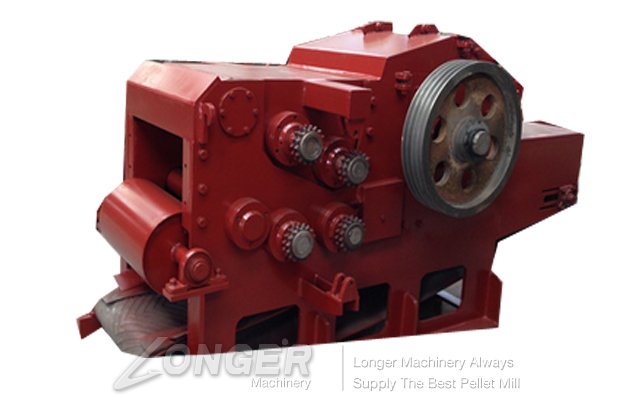

Drum Wood Chipper Machine LGBX216A

Drum Wood Chipper Shredder LGBX216A.Drum Wood Chipper Machine LGBX216A is widely used in particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory.

Features
Drum Wood Chipper Machine LGBX216A is widely used in particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory.
1)Drum Wood Chipper GGBX216A can be directly putted on the ground when it is working, and have a big capacity.
2)Drum wood chipper can chip wood log/round log within 30mm,it is widely used for power plant,wood pellet making line.
3)Drum wood chipper cutting is mainly small trail wood,lumbering remains(such as branches,twigs,tress pallets,waste of wooden box)and woodworking remain such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo etc).

Material
wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board. Non-wood raw material: sugarcane, reed, bamboo etc.

Technical Data
Model LGBX216A
Diameter of cutter head     650
Rotary cutter quantity     3
Feeding size    540*240mm
Rotary speed 836R/Min
Feeding speed 37.4m/min
Raw material max. diameter Cotton stalk etc. non-physical fiber.
Wood chip length 15mm
Capacity  2T/H
Main power 45Kw
Feeding motor 3*2Kw
weight (kg) 4.146T
SizeL*W*H (mm) 1800*2056*1154
