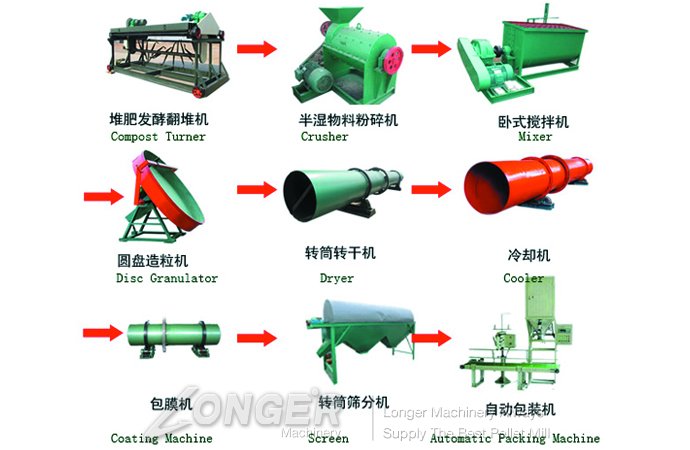

Compound fertilizer processing line include:material burdening,mixing,forming,drying,cooling,grading,coating machine,and packing machine.

This Compound Fertilizer Production Line with No drying process,forming directly.

Compound Fertilizer Production Line's Capacity:1-1.5t/h,1.5-3t/h.

Compound Fertilizer Production Line is less investment, quick effect, good economic benefit.

Complete sets of equipment, process layout is compact, scientific and reasonable, advanced technology.

This production line suitable for compound fertilizer,chemical engineering,fodder.Also can product different kind of concentrations compound fertilizer(include organic fertilizer,chemical fertilizer,magnetic fertilizer).

Especially the corning of rare earth, potash fertilizer and ammonium bicarbonate series compound fertilizer fills the domestic gaps and takes the lead throughout the country.

Also provide no dry compound fertilizer production machine, compound fertilizer equipment,tower compound fertilizer equipment.

Compound Fertilizer Production Line
horizontal type hammer mill

Name	Model	Power(kw)	Capacity(t/h)	Dimension (mm)
horizontal type hammer mill	400	15	1-2	1000*1100*1050
	600	22	3-5	1100*1300*1200
	800	30	5-8	1100*1500*1200

Single Axis Horizontal Mixer

Model	Power (kw)	Maximum Capacity (t/h)	Dimension (mm）
LG-1500*700	7.5	2-3	25000*750*1000
LG-1500*900	11	3-5	25000*9500*1000
LG-1000*2000	15	5-8	2000*1000*1150

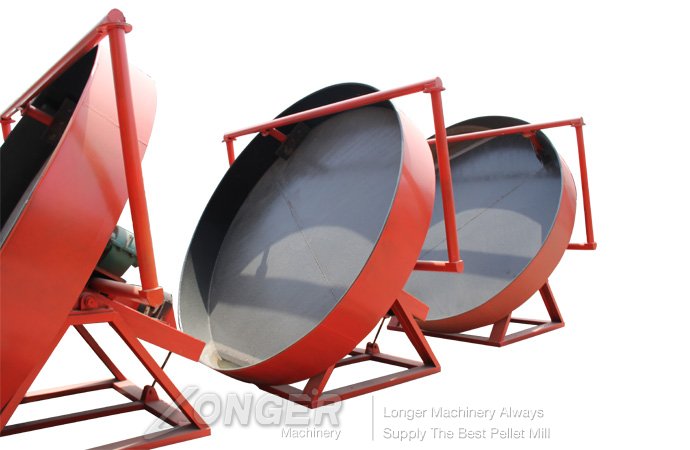

Disk Granulator

Model	LG2645	LG2845	LG3048	LG3250	LG3550
Diameter	2600mm	2800mm	3000mm	3200mm	3500mm
Disc	450mm	450mm	480mm	500mm	500mm
Dip angle	40°-55°
Power	7.5kw	7.5kw	11kw	11kw	15kw
Capacity	1-2t/h	3-4t/h	4-5t/h	5-7t/h	7-9t/h
Dimension	2600*2000*2600mm	2800*2200*2800mm	3000*2500*3000mm	3200*2800*3200mm	3600*3200*3300mm
Weight	1.7t	1.9t	2.2t	2.5t	4.5t

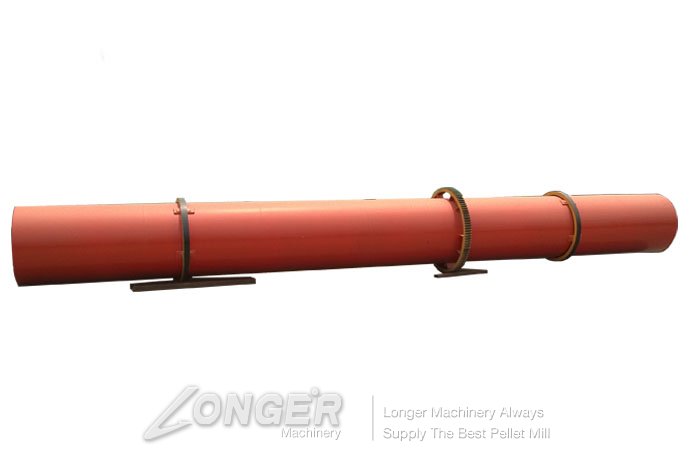

Cylinder Dryer

Model	Power（kw）	Output（m³/h）	Size（Dia*Len.mm）
LG-D1	5.5	0.2-1	600*6000
LG-D2	5.5	1-1.5	800*8000
LG-D2	7.5	1.5-2	1000*10000
LG-D5	11	2-5	1200*12000
LG-D8	15	5-8	1500*15000
LG-D12	18.5	7-12	1800*18000
LG-D14	22	8-14	2000*20000
LG-D218	37	12-18	2200*22000
LG-D20	45	15-20	2400*24000
LG-D25	75	20-25	2800*28000
LG-D30	90	25-30	3000*30000

Cylinder Cooler

Model	Power（kw）	Output（m³/h）	Size（Dia*Len.mm）
LG-C1	5.5	0.2-1m³/h	600*6000
LG-C2	5.5	1-1.5m³/h	800*8000
LG-C2	7.5	1.5-2	1000*10000
LG-C5	11	2-5	1200*12000
LG-C8	15	5-8	1500*15000
LG-C12	18.5	7-12	1800*18000
LG-C14	22	8-14	2000*20000
LG-C218	37	12-18	2200*22000
LG-C20	45	15-20	2400*24000
LG-C25	75	20-25	2800*28000
LG-30	90	25-30	3000*30000

Cylinder screening machine

Model	Power（kw）	Capacity（m³/h）	Size
LG-CS1	3	1-3	1000*2000
LG-CS3	4	1-3	1000*3000
LG-CS5	4	3-5	1000*4000
LG-CS10	5.5	5-10	1200*4000
LG-CS20	7.5	10-20	1500*5000
LG-CS30	7.5	20-30	1800*6000
LG-CS35	11	30-35	2000*8000

1.What's Compound Fertilizer?

Compound fertilizers, which contain N, P, and K, can often be produced by mixing straight fertilizers. In some cases, chemical reactions occur between the two or more components. For example monoammonium and diammonium phosphates, which provide plants with both N and P, are produced by neutralizing phosphoric acid (from phosphate rock) and ammonia (from a Haber facility):

NH₃ + H₃PO₄ → (NH₄)H₂PO₄

2 NH₃ + H₃PO₄ → (NH₄)₂HPO₄

2.If i can just buy some machine of this production line?
Yes,Of course,customers can choose the machine they need according their requirements.

3.What's the capacity you have?
We have 3-80T/h capacity.so when you send us the inquiry,please let us know the capacity you need.

4.How to contact us?
Find the contact informations at bottom left of the home page,send inquiry by email or call us.You can also find the contact informations in the home page"CONTACT US" to get in touch with us.

5.How about the payment term?
We accept B/L.T/T.Western Union and MoneyGram.
5-20days after received 40% of the whole payment.
40% as prepayment by T/T and before the shipping the balance of 60% should be effected
