- Carcass cleaning machine
-
- MOQ:1 /Sets
- Brand:LONGER MACHINERY

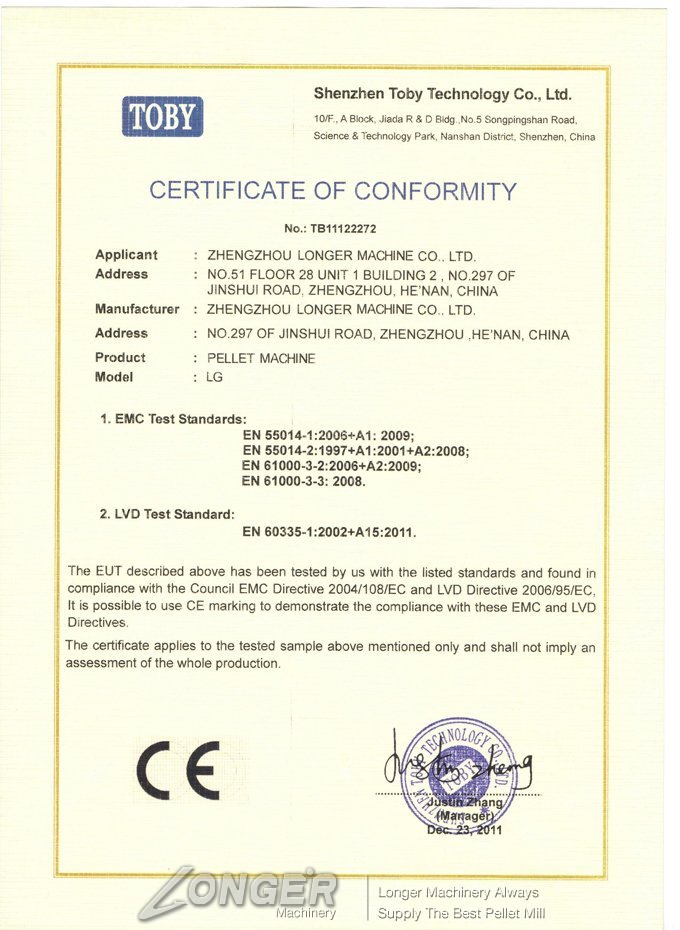

- Certification:CE
- Supply Ability:100 Set/Sets Per Month
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:12 Months
- LOADING PORT:Qingdao Port|Tianjin Port
- Country Of Origin:China
- Features
- Technical Data
- FAQ
- Case
- Certification

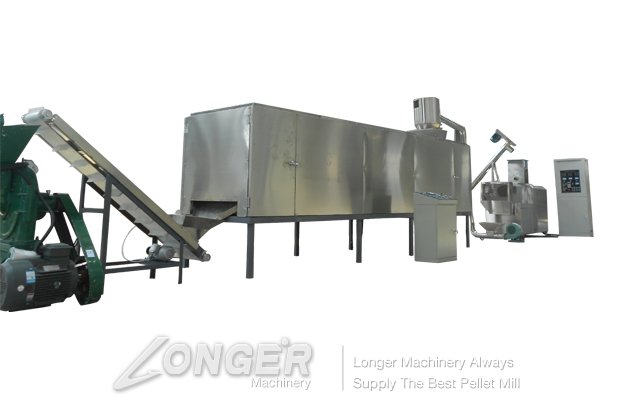

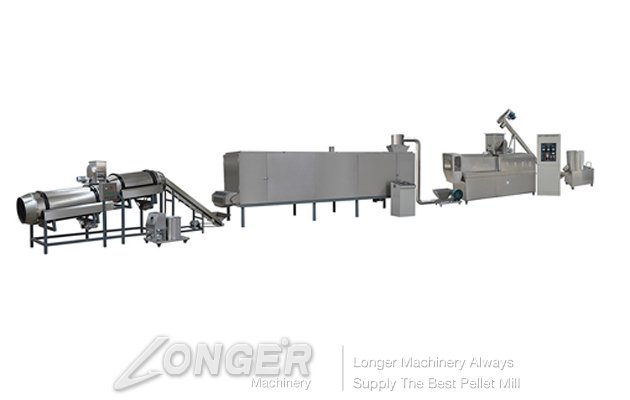

Pet Food Production Line to produce particles circular, triangle, bone shape, etc. Particle size according to the abrasive size adjustment.
Applicable to the dog food, cat food, particle suspension/sink fish food, shrimp, turtle food, feed, mink, such as pet birds.
In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.Animal food is dried in a multi-pass dryer until its moisture content is low enough to make it shelf stable. Animal food may pass through a coating drum where animal fat and vitamins are applied onto animal food.
We have full formula of foods and will guide you to use different materials to produce variety quality food.
1. Raw Materials: adopts corn flour, fish meal as raw materials
2. Products: different shapes are made by adjusting the dies from extruder
3. Capacity: 150kg/h, 240kg/h, 500kg/h, 1 ton---3ton/h
4. Flow chart: Mixing system---Extrusion system---Drying system---Flavoring system---Packing system
5. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
6. Machines Materials: All the Pet feed pellet production line are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
Nowadays there are more and more kinds of pets, they have more requirements of their food, such as nutrition, health and taste. Pet feed pellet production line or animal material intended for consumption by dogs or other animals. The pet food is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly than human beings.Our company research and develop many kind production for every pet requirement . We can adjust the proportion of raw material , temperature and water to make different kind of pet food for different pets. There are many kinds shapes for dog and cat, such as: round, triangle,square,heart-shaped,bone-shaped,fish-shaped,etc. It just need to be change moulds to make different shapes.
Nowadays there are more and more kinds of pets, they have more requirements of their food, such as nutrition, health and taste. Pet feed pellet production line or animal material intended for consumption by dogs or other animals. The pet food is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly than human beings.Our company research and develop many kind production for every pet requirement . We can adjust the proportion of raw material , temperature and water to make different kind of pet food for different pets. There are many kinds shapes for dog and cat, such as: round, triangle,square,heart-shaped,bone-shaped,fish-shaped,etc. It just need to be change moulds to make different shapes.
| Model | LGL-150 |
| Voltage | 380v |
| Install power | 70kw |
| Pratical power | 55kw |
| Capacity | 100-150kg/h |
| Length of line | 16m |
Details for each machine:
| NO. | EQUIPMENT | TECHNICAL PARAMETER | function |
| 1 | Mixer |
Model:LG-1 Voltage:380v/50hz The motor power: 3 kw The actual energy consumption: 3kw Mixing time :15-20kg /3 minutes. Equipment size: 0.7*0.5*1.1 m |
To mix the raw materials with the water |

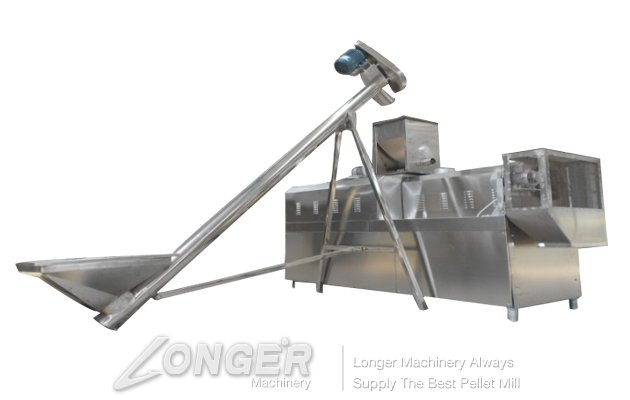

| 2 | Screw conveyor |
Model:LG-2 Voltage:380v/50hz The motor power: 1.5 kw The actual energy consumption: 1.5 kw Production capacity: 80-200kg/time Equipment size: 1.5*0.7*2.5 m |
To send the materials to the extruder |

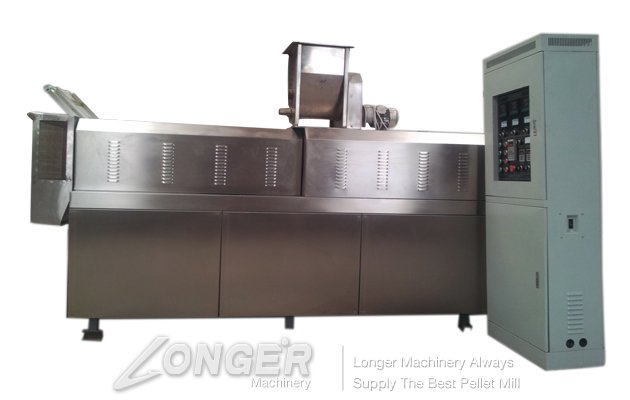

| 3 | Double-Screw extruder |
Model:LG-3 The motor power:35kw The actual energy consumption: 22 kw Production capacity: 100-150kg/h Equipment size: 2.5*0.8*1.8 m |
To extrude and inflate the food. the main machine of the line |
| 4 | Air conveyor |
Model:LG-4 Voltage:380v/50hz The motor power: 0.55kw The actual energy consumption: 0.55 kw Production capacity: 80-200kg/h Equipment size: 1.2*0.6*2.3m |
To send the food to the next machine |
| 5 |

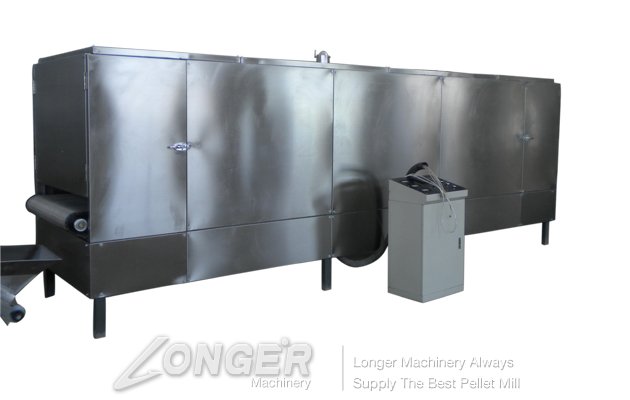

Roasting oven (3la |
Model:LG-5 Voltage: 380v/50hz Total power: 24.75 kw The actual energy consumption: 18 kw Production capacity: 100-150kg/h Equipment size: 5.1*1.2*1.8 m |
To dry the food |
| 6 | Automatic flavoring line |
Model:LG-6 Voltage:380v/50hz The motor power: 4..6kw The actual energy consumption:3kw Capacity:80-200kg/h Size:4.4*0.75*1.85m |
To flavor the production |
Question: What is the scope of application?
Answer:
Our Pet feed pellet production line can make pet food like Dog, Cat, Fish, Bird food etc with various shapes and tastes through changing the dies and formulas.
Question: What are the main characteristics of the machine?
Answer:
Widely used,different output,high quality,make many kinds of animal foods,stable performation,auto-temperature control system,self-cleaning,with different structure.
Question: Please give a brief introduction to the advantages of the machine.
Answer:
1. The screw is made of alloy by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
4.Adopted the inverters, ensure the extruder better running.
5. The gearbox has automatic lubrication function, with extends gear life.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
Question:What are the payment methods?
Answer:Western union,T/T,LC are accepted.
Question:What if customers know little about import processing?
Answer: Our factory has rich experience in export.We will assist customers with needs step by step, from placing orders to receiving poutry feed manufacturing equipment.
