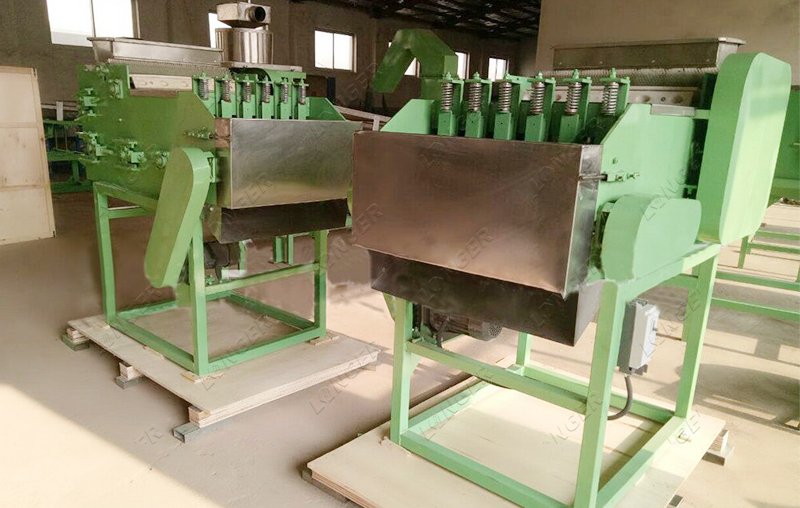

Raw Cashew Nut Shelling Machine Cashew Shell Removing Machine

This cashew nut shelling machine is a special cashew mechanical removal of cashew nut shell. Cashew nuts should be classfied into 3-5 grade according to the width of the cashew nut before shelling.

Features
Cashew nut shelling machine adopts automatic shelling technology, which has the characteristics of high efficiency, high shelling rate, high whole kernel rate, and large output. The cashew nuts can first graded by the cashew nut grading machine, so that the cashew nuts can be better hulled by cashew shelling machine.

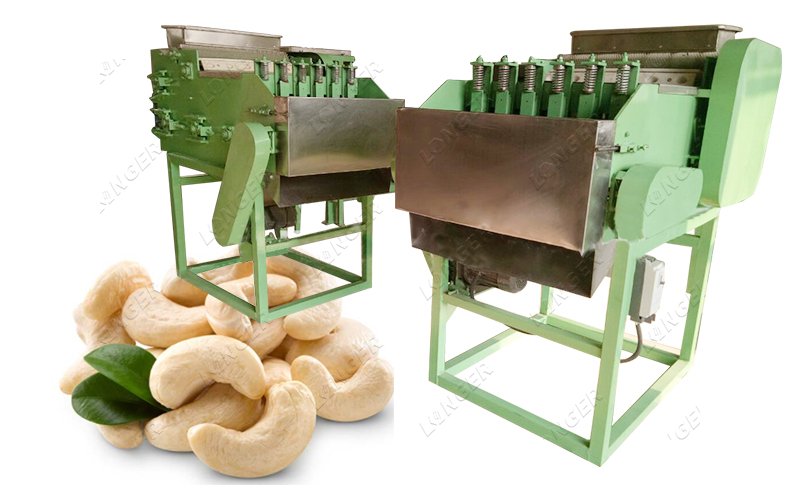

cashew nut shelling machine
A
dvantage of Cashew Shell Removing Machine:
l The shelling rate is high. The shelling rate can reach 98%.
l The whole kernel rate is high. The breaking rate of cashew nuts is as low as 1%.
l Fully automatic. Accurate cutting, high efficiency of shelling. The program is automated and easy to operate.
l adjustable. The distance between the blades is adjustable and can be used for shelling cashew nuts of different sizes.
l Variety of models are available. The output is different to meet the needs of cashew nut removing of various scales.
l Stainless steel. The whole body of cashew nut shelling machine is made of stainless steel, which is safe and harmless to human body and has a long service life.
l Environmentally friendly, power saving, and small footprint.

Working Principle of Cashew Shelling Machine:
l This machine adjusts the spacing of the blades according to the size of the cashew nut, and is used to peel the cashew nuts in different sizes.
l Turn on the power and check whether the motor is running normally.
l Pour the cashew nuts from the inlet, and move the raw cashew nuts and the blade vertically and axially at the same time.
l The cashew is cracked then the shell and kernel are separated.

Machine video:

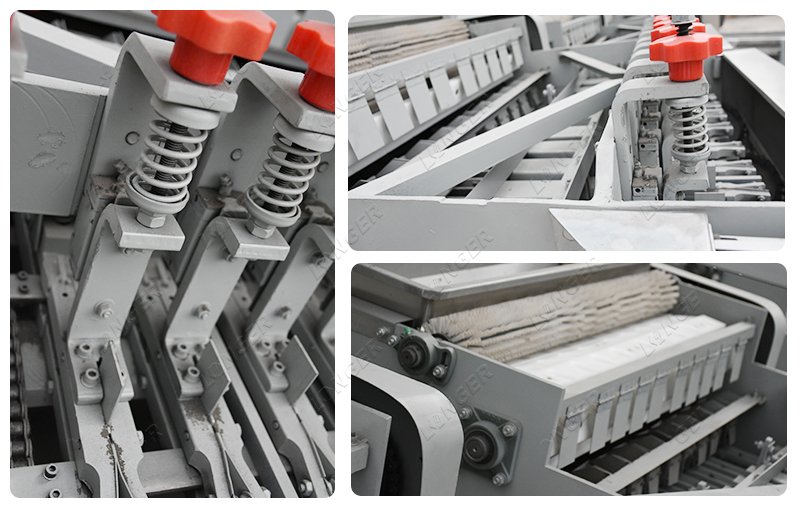

Structure of Cashew Shell Removing Machine:
The machine is mainly composed of frame, drum, blade, motor, hopper and shelling device. It can also be customized according to customer needs.

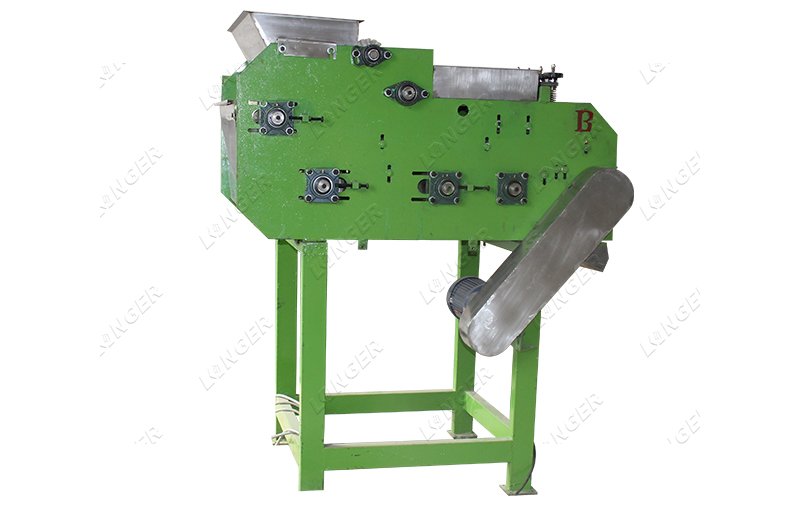

cashew nut sheller
Precautions of Cashew Nut Shelling Machine:
l Open the machine before use and check whether the motor can operate normally.
l The machine must be installed on a flat ground to prevent tilting and causing the machine to fail to operate normally.
l While using, customers can adjust the machine according to the size of cashew nuts to better hull different types of cashew nuts.

Technical Data
Model LG-KY4 LG-KY6 LG-KY10
Power 1.1kw 1.5 kw 2.2 kw
Voltage 380/220v 380/220v 380/220v
Capacity 80 kg/h 100 kg/h 200 kg/h
Weight 360 kg 460 kg 560 kg
Size 1.45*0.9*1.2m 1.45*1.15*1.6m 1.5*1.6*1.65m
