  1. Home > Product > Pellet Processing Machine >

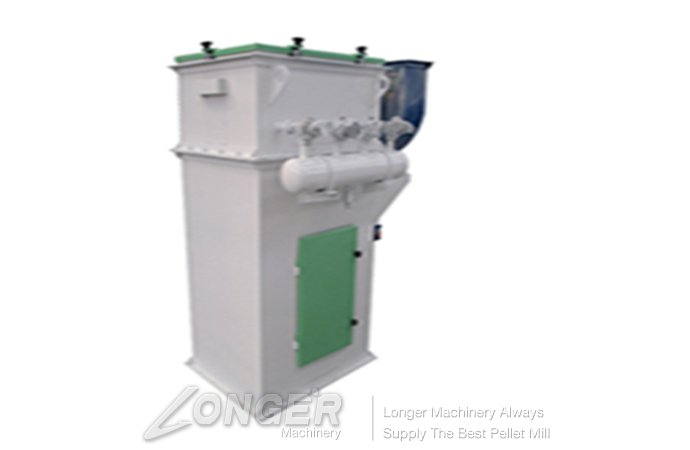

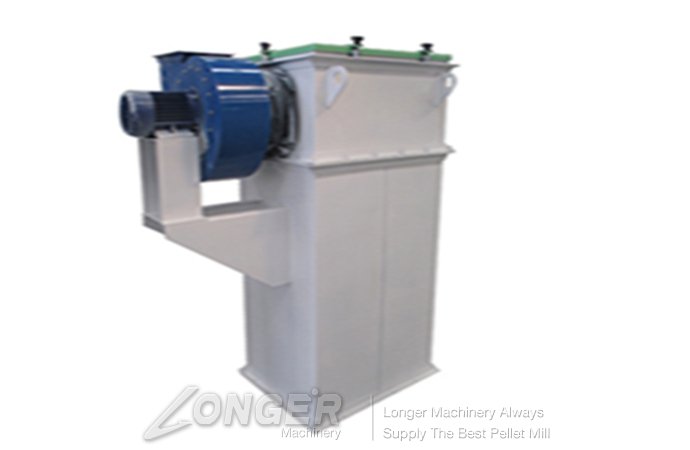

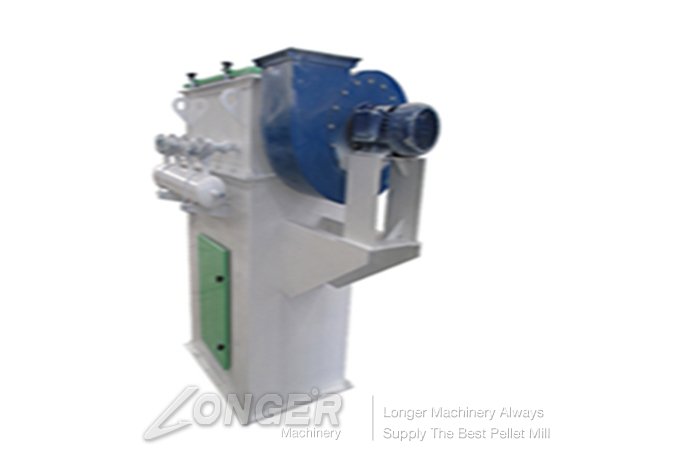

Pulse Jet Dust Collector Machine

The product is suitable for use in food,feed industry in single or suction dust and dust in the pneumatic conveying,also apply to other industries as dust recycling,excessive dust and other operations. This machine has a dust removing capac

Features
The product is suitable for use in food,feed industry in single or suction dust and dust in the pneumatic conveying,also apply to other industries as dust recycling,excessive dust and other operations.
This machine has a dust removing capacity of more than 99.8%,and can directly exhaust the air into  atmosphere;
The customized air header is directly connected with solenoid valves and ensures stable operation.
The collected materials are dry powder-type pellets, thus facilitating the recycling, and dramatically  increasing  the output  of the grinder if used together with grinder.
Pulse Dust Collector is widely used for inhaling and dedusting at feeding opening, mill mouth and discharging mouth of the hoist in the grain and fodder industry, caneffectively reduce the dust, improve the working environment.
Use the structure of combining fan and pulse bag dust filter as a whole and remove framework, with the characteristics of small volume, large filtering area and high dust collection efficiency≥ 99.5%).
Technical Data
Model Number of bag Power Air flow
LGMa6 6pcs 1.1kw 900-1800 m3/h
LGMa8 8pcs 1.5kw 1100-2300 m3/h
LGMa12 12pcs 2.2kw 1700-3500 m3/h
LGMa18 18pcs 3.0kw 2700-5200 m3/h
LGMa24 24pcs 5.5kw 4000-7400 m3/h
LGMa36 36pcs 11.0kw 4900-6400 m3/h
LGMa54 54pcs 18.5kw 6500-13000 m3/h
