Cylinder Cooler

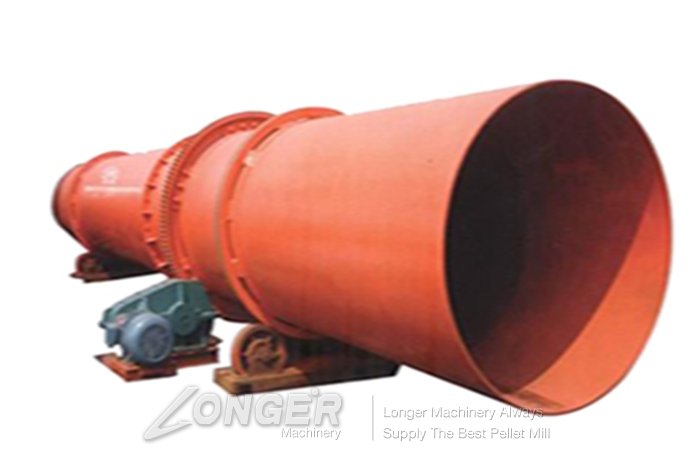

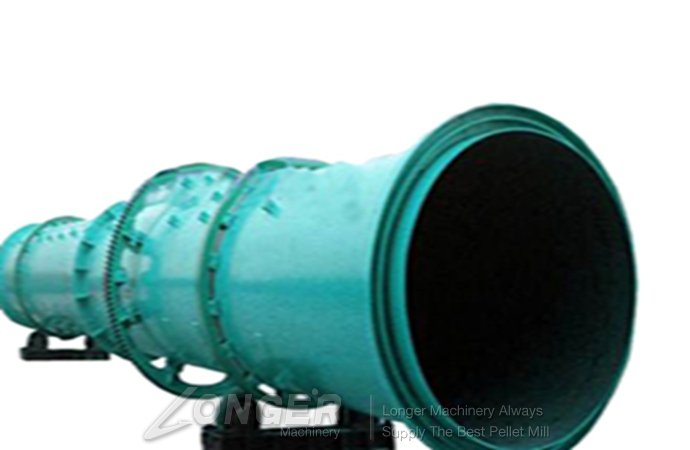

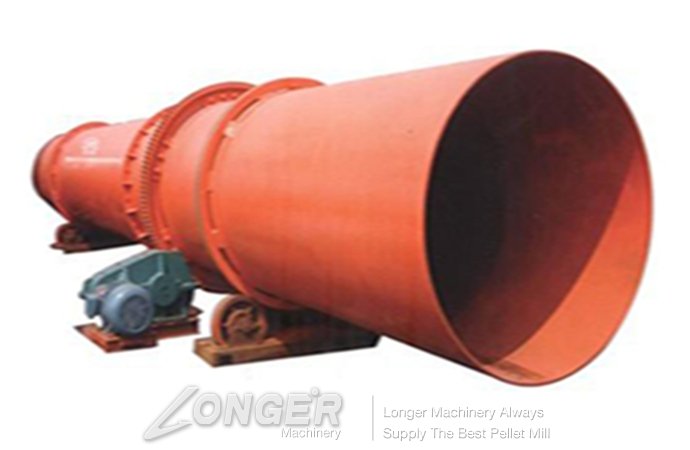

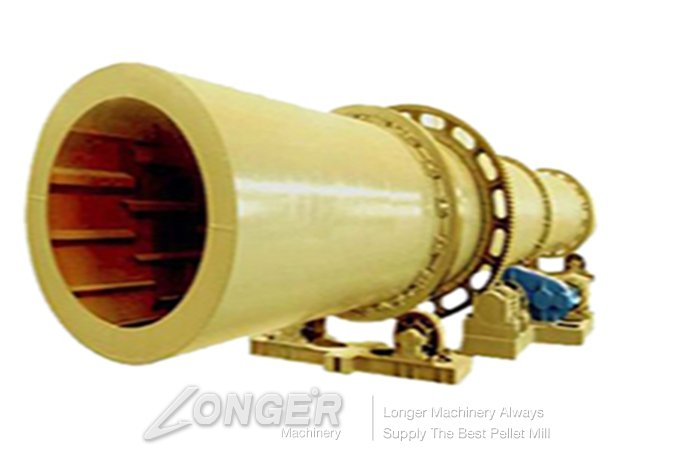

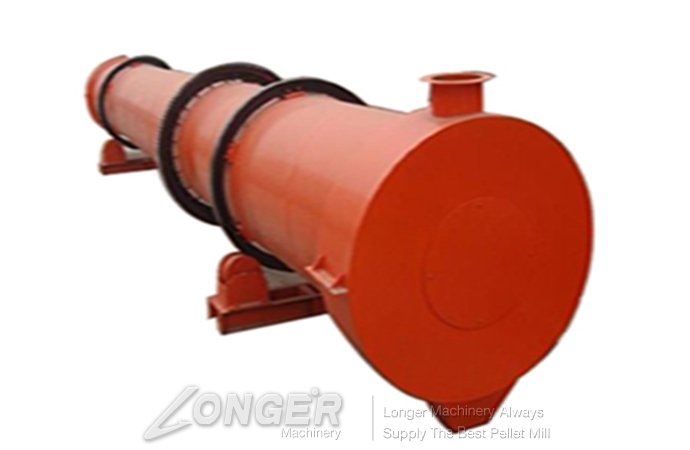

This Drum cooling machine is used for producing compound fertilizer, mainly used in the fertilizer pellet making industry, our cooling machine can cool certain temperature and particle size fertilizer, as you can see from the picture, this

Features
 This Drum cooling machine is used for producing compound fertilizer, mainly used in the fertilizer pellet making industry, our cooling machine can cool certain temperature and particle size fertilizer, as you can see from the picture, this cooling machine is similar to the cylinder dryer machine, usually works together with dryer machine. By using this cooling machine, people can improve the speed of fertilizer pellet cooling by a large margin,and then increases the capacity, in the same time, reduce labor intensity, increase production, decrease and reduce the temperature of fertilizer pellets.
    Our Cylinder Cooling Machine is with compact structure, high efficiency, reliable performance and strong adaptation, so the rate of thermal energy utilization is high, cooling evenly, the times of cleaning up materials is fewer, convenient use and maintenance, etc.
    We have different cylinder dryer machine models with different diameters and different lengths for your reference, If possible, you can also tell us the size of your factory, if you have no factory at present, please tell us what is your materials to make fertilizer pellet, what capacity you want, and then we will suggest suitable dryer machine for you.

Technical Data
Model Power(kw) Output(m³/h) Diameter(mm) Length(mm)
LG-C1 5.5 0.2-1 600 6000
LG-C2 5.5 1-1.5 800 8000
LG-C2 7.5 1.5-2 1000 10000
LG-C5 11 2-5 1200 12000
LG-C8 15 5-8 1500 15000
LG-C12 18.5 7-12 1800 18000
LG-C14 22 8-14 2000 20000
LG-C218 37 12-18 2200 22000
LG-C20 45 15-20 2400 24000
LG-C25 75 20-25 2800 28000
LG-C30 90 25-30 3000 30000
The angle is 2-5º, the Import air temperature is 150-250℃, Outlet air temperature is 60-80℃.
