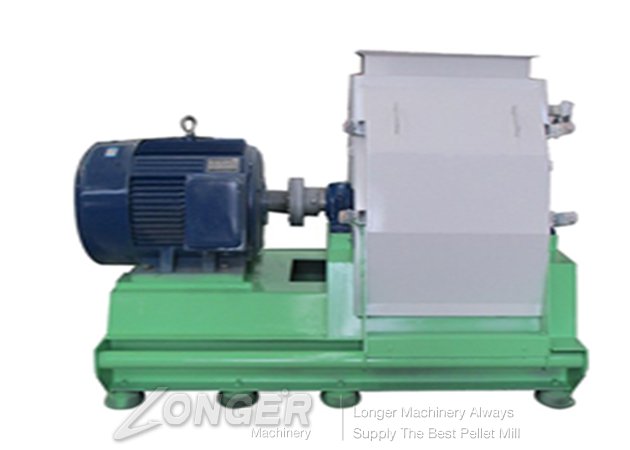

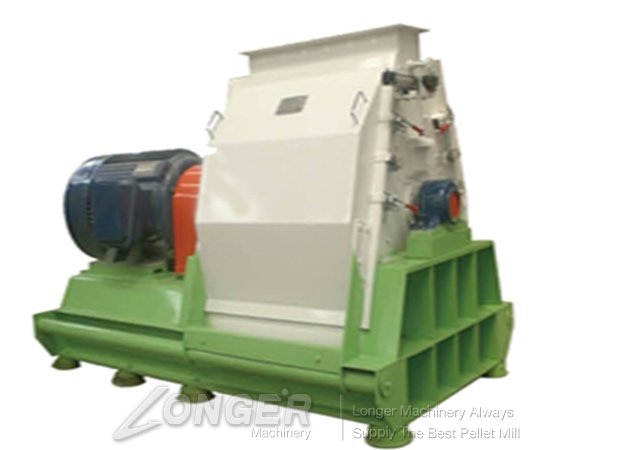

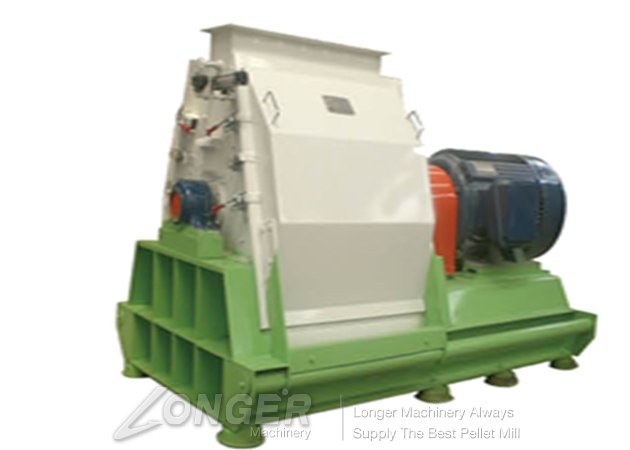

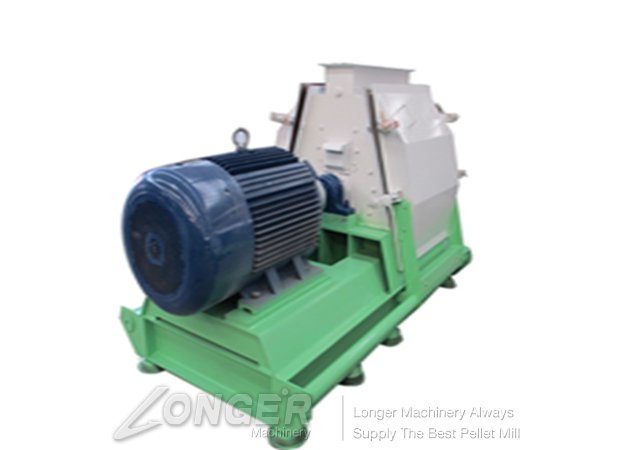

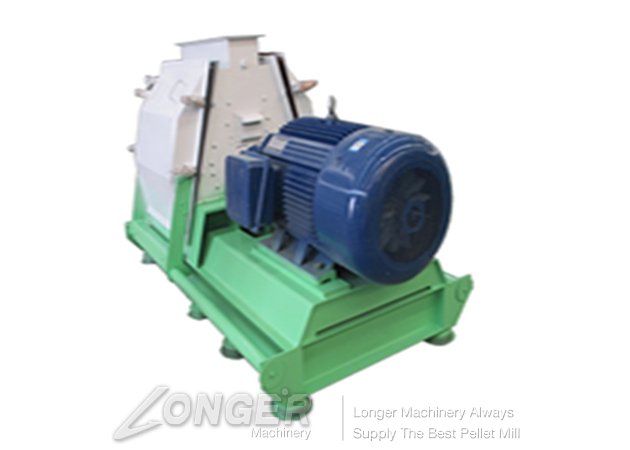

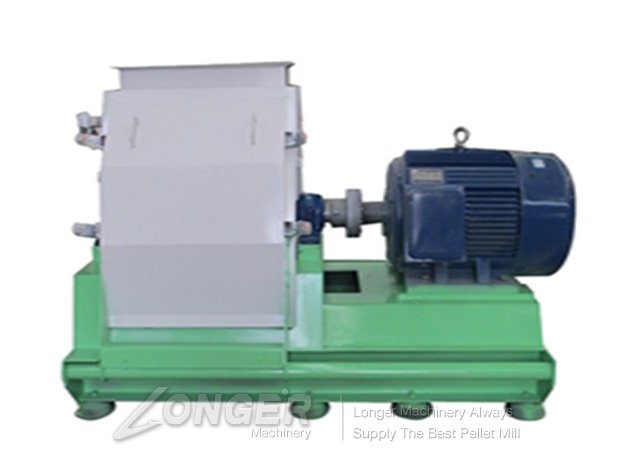

SFSP Fine Grinder

Micro Grinder is export-oriented type high speed grinding, the material into the crushing chamber, by rotating hammer to obtain ideal crushing effect, the crushed material, entered into the catcher automatically, dust by dust collector thro

Features
Micro Grinder is export-oriented type high speed grinding, the material into the crushing chamber, by rotating hammer to obtain ideal crushing effect, the crushed material, entered into the catcher automatically, dust by dust collector through a bag filter. No dust float in the sky, in the process of production and can improve the utilization rate of material and reduce the enterprise cost.
Micro grinding machine host by frame, stepless speed reducer, automatic feeder and the composition of crushing chamber, crushing indoor with classification device, lining, crushing blade main working parts such as automatic feeder to push the material into the crushing chamber, because of the negative pressure effect, into the crushing indoor material by crushing blade high-speed rushed out and shearing, at the same time has also been shattered by the high frequency vibration of the eddy current, the crushed material because of the negative pressure effect, into the hierarchical wheel, by grading the wheel rotation speed to control the fineness.
Technical Data
Model LG-SFSP56*36 LG-SFSP56*40 LG-SFSP66*60 LG-SFSP66*80 LG-SFSP66*100
Power(kw) 22 37 55/75 90/110 132/160
Rotor Diameter(mm) 560 560 660 660 660
Spindle speed(r/min) 2980 2980 2980 2980 2980
Mesh size(mm) 3.0 3.0 3.0 3.0 3.0
Output(t/h) 3-5 5-8 9-16 12-22 18-28
