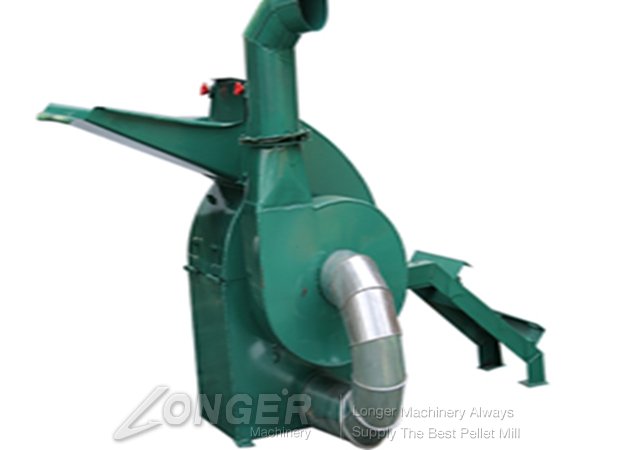

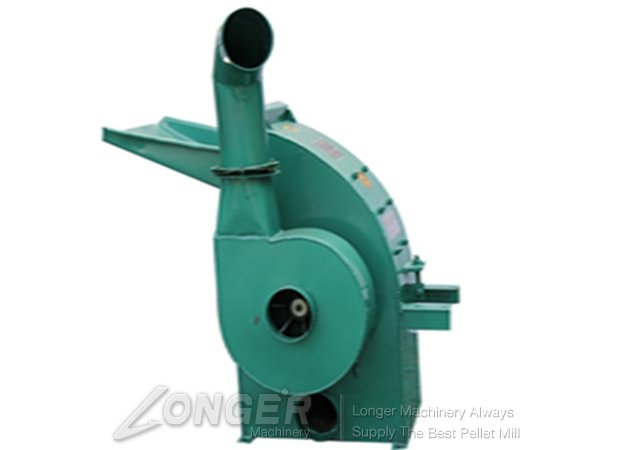

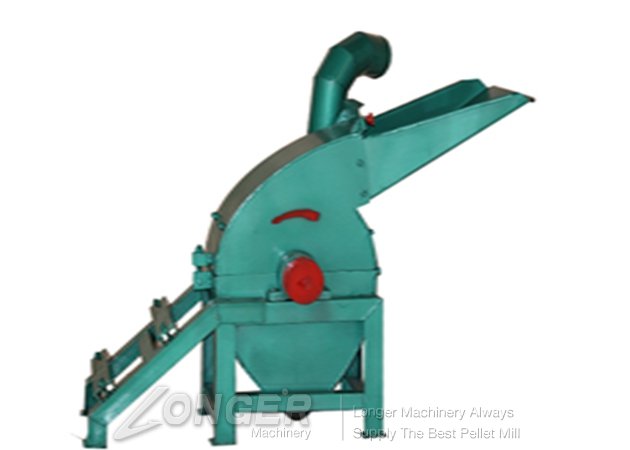

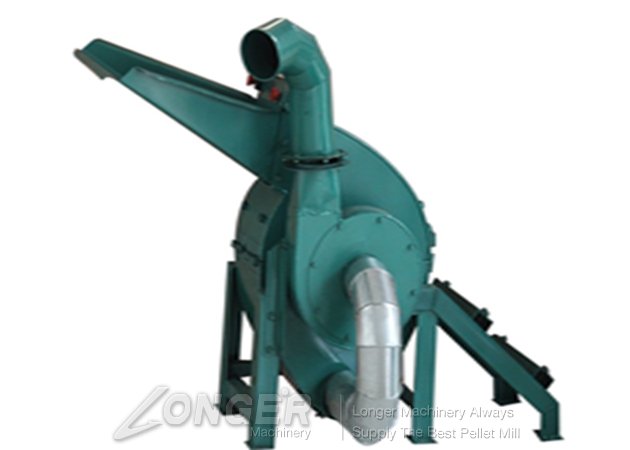

Wood Pellet Hammer Mill

1.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically. 2.Unique Feeding Design, the feeding inlet is made at the si

Features
1.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
2.Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
3.The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
4.Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.
Technical Data

Model Power Size Capacity Thickness of steel plate
9FQ-36 5.5 400*550*850mm 200-300kg/h 3.0
9FQ-36New 5.5-7.5 650*600*1050mm 200-600kg/h 3.0
9FQ-40 7.5 700*650*1050mm 300-800kg/h 3.0
9FQ-42 11 780*700*1100mm 400-1000kg/h 3.0
9FQ-50 15   1500-3000kg/h 5.5
9FQ-50-40 22 100*100*60cmmm 3000-5000kg/h 6.0
9FQ-50-40 big hopper 30   4000-8000kg/h 6.0
