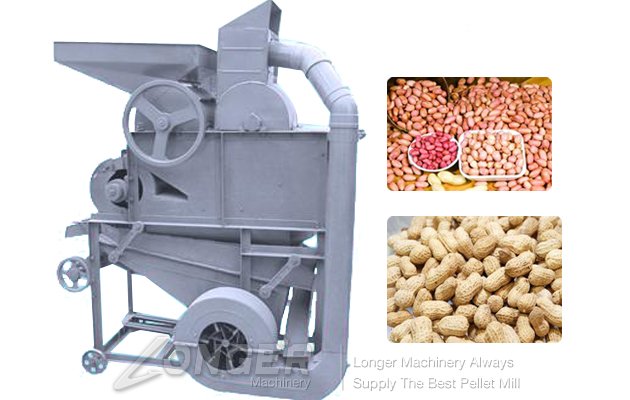

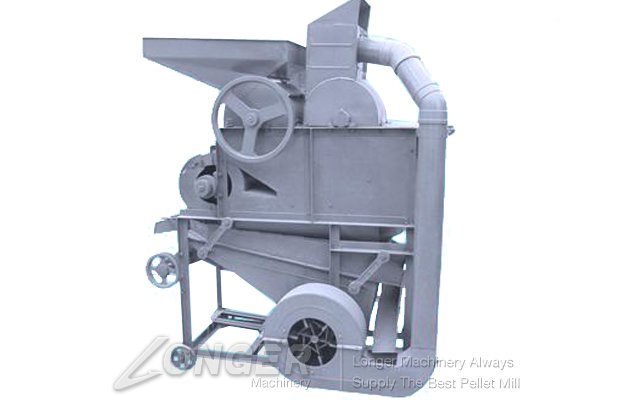

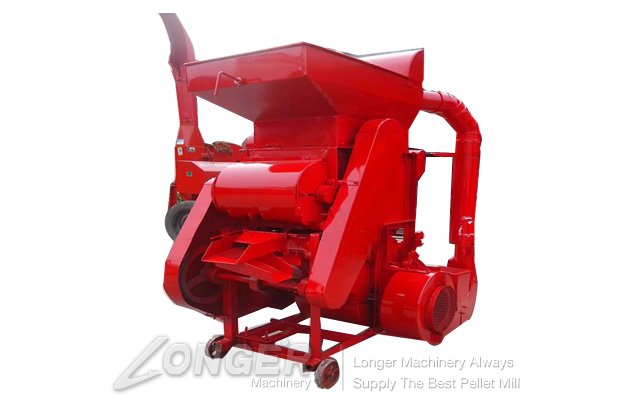

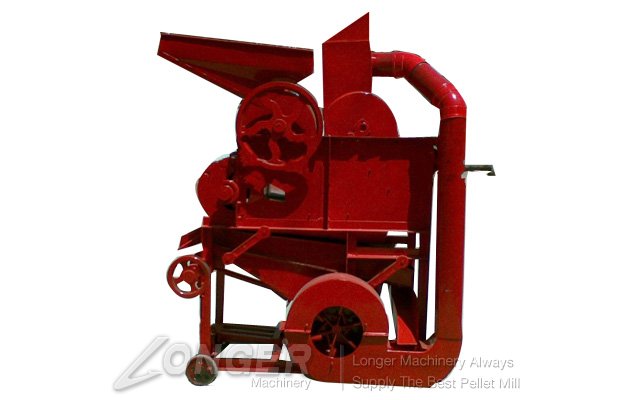

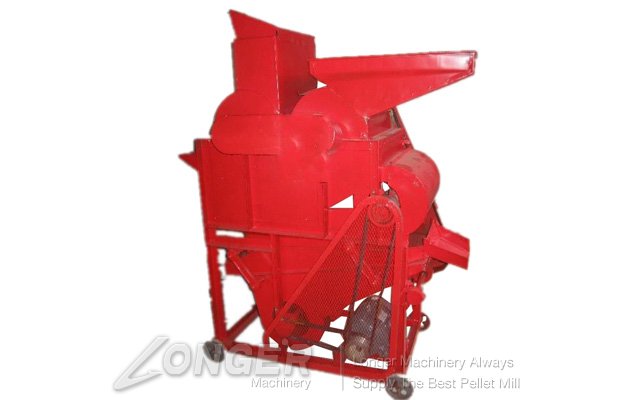

High Quality Peanut Shelling Machine
MOQ: | 1 /Sets |
Brand: | LONGER MACHINERY |

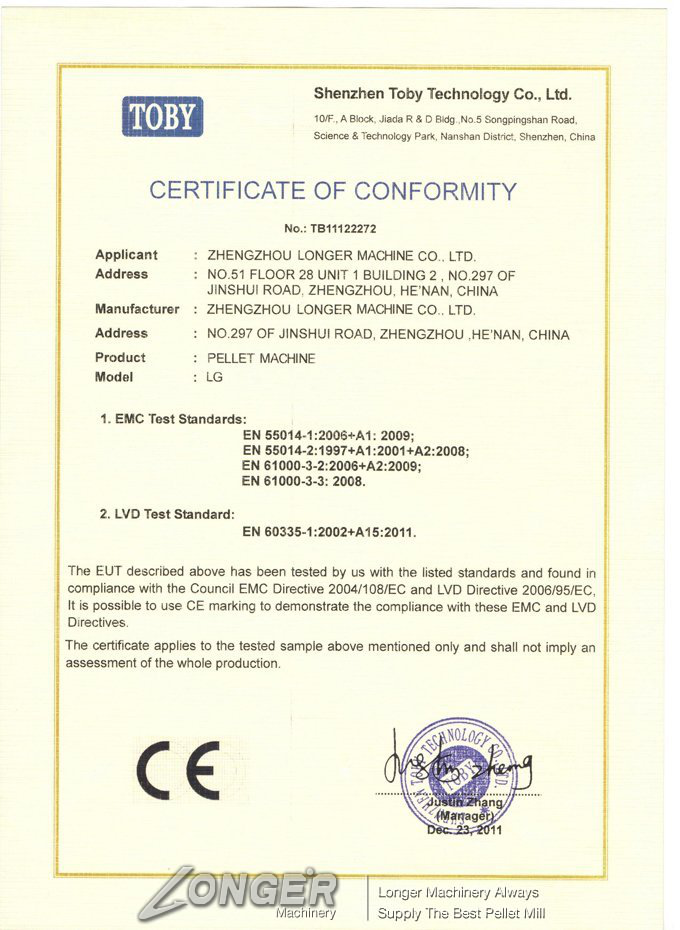

Certification: | CE |
Supply Ability: | 100 Set/Sets Per Month |
PAY METHOD: | WEST UNION L/C T/T CASH |
Warranty Time: | 12 Months |
LOADING PORT: | Qingdao |
Country Of Origin: | China |
Feature:
The main content of this High Quality Peanut Shelling Machine is the processing of the peanuts and broken is low, the sorting clean, good color, less impurity, the indicators all meet the national standards. 2 Colors for your selection: Red & Grey.
Introduction:
Peanut sheller is my factory according to the current peanut market demand and to study the universal product research and development,
Workflow:
peanut by hand feeding, crude fell to a gate in the text, since the text plate is rotated and fixed-irons concave rubbing force between the plates, the peanut shells stripped after the separation of peanut shell while falling through the grid, through the duct over by the wind will blow most of the peanut shell hit the machine, but not yet a part of peanuts and peanut peeling fruit together small proportion fall into the sorting screen, after re-screening, separating peanuts from the screen surface line, through feed entrance and exit into sacks, but have not yet peeled peanuts (small fruit), then the screen face down, after crossing the material flow into the elevator, and then from the elevator into the grid for the second shelling of fine lines, and then after the election the proportion of branches screening , you can achieve all the peel.
peanut by hand feeding, crude fell to a gate in the text, since the text plate is rotated and fixed-irons concave rubbing force between the plates, the peanut shells stripped after the separation of peanut shell while falling through the grid, through the duct over by the wind will blow most of the peanut shell hit the machine, but not yet a part of peanuts and peanut peeling fruit together small proportion fall into the sorting screen, after re-screening, separating peanuts from the screen surface line, through feed entrance and exit into sacks, but have not yet peeled peanuts (small fruit), then the screen face down, after crossing the material flow into the elevator, and then from the elevator into the grid for the second shelling of fine lines, and then after the election the proportion of branches screening , you can achieve all the peel.
Technical Data
Model | Capacity | Dimension | Shelling Rate | Broken Rate | Power |
LG-3 | 500--700KG/H | 130*60*142cm | 95% | 5% | 3kw/380v |
LG-5 | 800--1000kg/h | 150*95*176cm | 95% | 5% | 4kw/380v |
